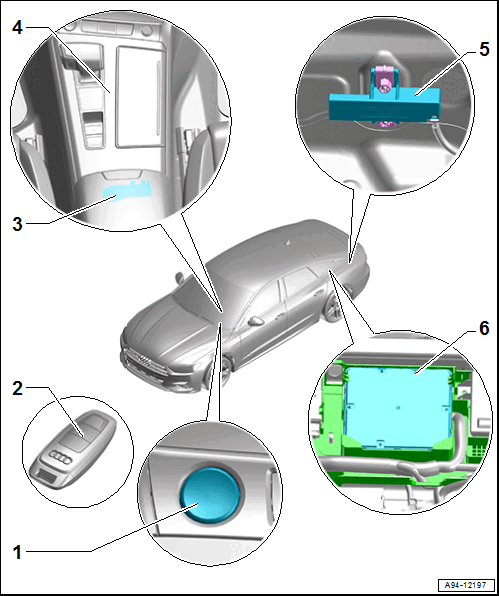

Component Location Overview - Access/Start Authorization System
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Access/Start Authorization Button -E408-
- Removing and Installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
- Ignition Key
- Access/Start System Antenna 1 in Vehicle Interior -R138-
- With emergency transponder sensor
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Center Console
- Access/Start System Antenna In Luggage Compartment -R137-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
