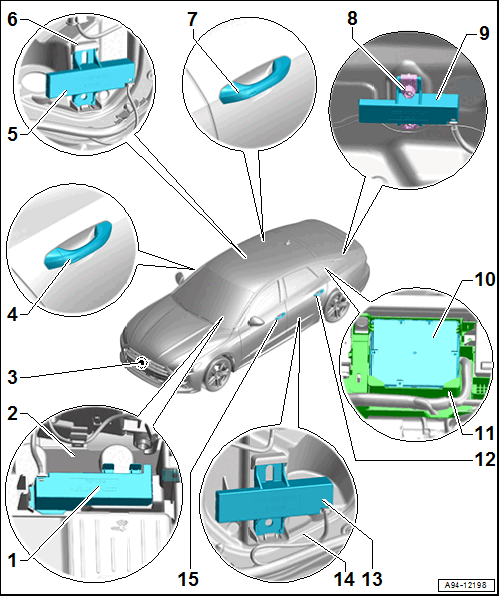

Component Location Overview - Keyless Access Authorization System
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Access/Start System Antenna 1 in Vehicle Interior -R138-
- Removing and Installing. Refer to Access/Start System Antenna 1 in Vehicle Interior -R138-, REMOVING AND INSTALLING .
- Center Console
- Front Access/Start Authorization Antenna -R376-
- Removing and Installing. Refer to Front Access/Start Authorization Antenna -R376-, REMOVING AND INSTALLING .
- Front Passenger Side Exterior Door Handle
- With Front Passenger Exterior Door Handle Touch Sensor -G416-
- Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Right Access/Start Authorization Antenna -R201-
- Removing and Installing. Refer to LEFT AND RIGHT ACCESS/START AUTHORIZATION ANTENNA -R200- / -R201-, REMOVING AND INSTALLING .
- Door Inner Cover
- Rear Passenger Side Exterior Door Handle
- With the Right Rear Exterior Door Handle Touch Sensor -G418-
- Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Spring Nut
- Replace after removing
- Quantity: 2
- Access/Start System Antenna In Luggage Compartment -R137-
- Removing and Installing. Refer to Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Mount
- For the comfort system central control module
- Rear Driver Side Exterior Door Handle
- With the Left Rear Exterior Door Handle Touch Sensor -G417-
- Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
- Left Access/Start Authorization Antenna -R200-
- Removing and Installing. Refer to LEFT AND RIGHT ACCESS/START AUTHORIZATION ANTENNA -R200- / -R201-, REMOVING AND INSTALLING .
- Door Inner Cover
- Driver Side Exterior Door Handle
- With Driver Exterior Door Handle Touch Sensor -G415-
- Equipped on some models: Close Range Communication Control Module -J1169- with integrated Close Range Communication Antenna -R350-
- Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
Front Access/Start Authorization Antenna R376 Tightening Specifications
-- Tighten the bolt -arrow- to 3 Nm.
