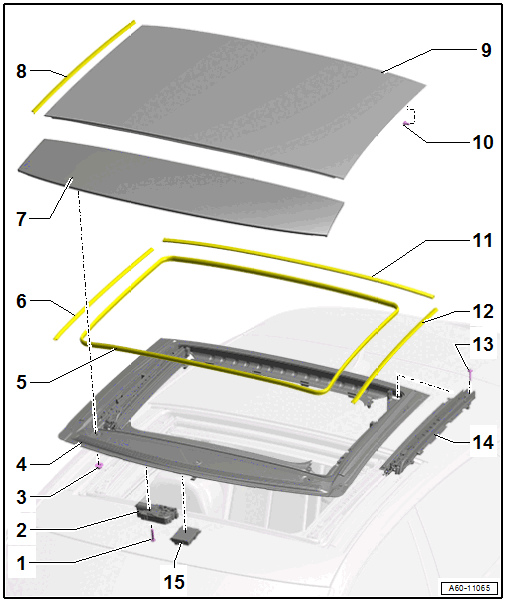

Overview - Sliding Sunroof, Q3 SPORTBACK
- Bolt
- Quantity: 2
- Self-locking
- Replace after removing
- 3 Nm
- Sunroof Motor -V1-
- Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Nut
- Quantity: 3
- Self-locking
- Replace after removing
- 4 Nm
- Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Inner Seal
- For the sunroof frame
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Outer Seal
- For the sunroof frame
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Glass Trim
- Removing and Installing. Refer to GLASS TRIM, REMOVING AND INSTALLING .
- Seal
- For the glass panel
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Glass Panel
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Adjusting. Refer to GLASS PANEL, ADJUSTING, Q3 SPORTBACK .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Bolt
- Quantity: 8
- Self-locking
- Replace after removing
- 5.5 Nm
- Outer Seal
- For the sunroof frame
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Outer Seal
- For the sunroof frame
- Replace after removing
- Removing and Installing. Refer to SUNROOF SEALS, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Bolt
- Self-locking
- Replace after removing
- 5 Nm
- Slide and Tilting Mechanism
- Overview. Refer to OVERVIEW - SLIDING AND TILTING MECHANISM .
- Sunroof Control Module -J245-
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING, Q3 SPORTBACK .
- Perform the adaptation after installing. Refer to Sunroof Control Module -J245-, PROGRAMMING .
