Overview - Sliding And Tilting Mechanism

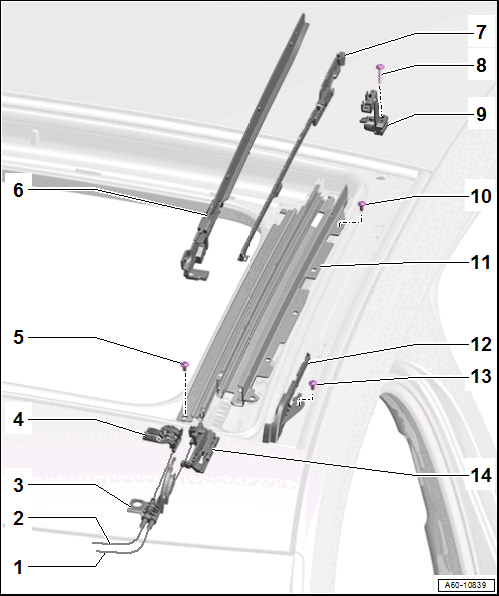

Fig 1: Exploded View Of Sunroof Sliding And Tilting Mechanism

Courtesy of AUDI OF AMERICA, LLC

1. Cable
   • For the slide and tilting mechanism
   • Removing and Installing. Refer to SLIDING AND TILTING MECHANISM CABLE, REMOVING AND INSTALLING .
   • Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
2. Cable
   • For sunroof shade
   • Removing and Installing. Refer to SUNROOF SHADE CABLES, REMOVING AND INSTALLING .
   • Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
3. Inner Bracket
   • For the cables
   • Can only be removed when the cables are removed
4. Sunroof Shade Driver
   • Removing and Installing. Refer to SUNROOF SHADE CABLES, REMOVING AND INSTALLING .
5. Bolt
   • 5 Nm
6. Glass Panel Tilting Rail
7. Tilting Lever
8. Bolt
   • 5 Nm
9. Operating Lever
   • For the tilting lever
10. Bolt
    • 5 Nm
11. Guide Rail
    • For sliding and tilting mechanism and sunroof shade
    • Removing and Installing. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .
12. Outer Bracket
    • Removing and Installing. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .
13. Bolt
    • 5 Nm
14. Sunroof Driver
    • Removing and Installing. Refer to SLIDING AND TILTING MECHANISM CABLE, REMOVING AND INSTALLING .
