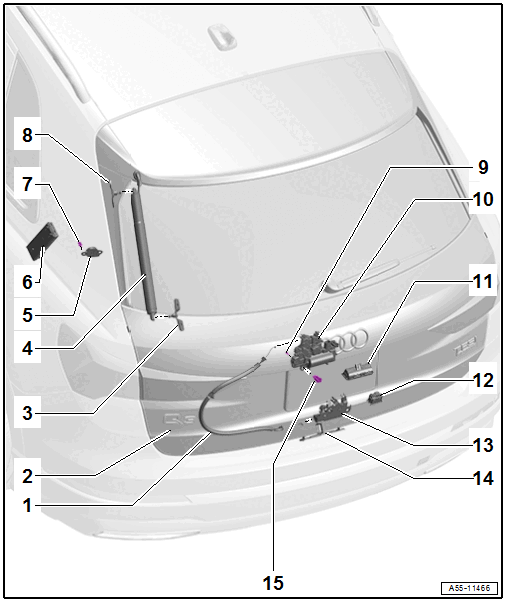

Overview - Power Rear Lid Opener
- Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
- Rear Lid
- Overview. Refer to OVERVIEW - REAR LID .
- Mount
- With ball pin
- Rear Lid Motor
- Left: Rear Lid Drive Unit -VX69- with integrated Rear Lid Motor 1 - V444- and Sensor in Rear Lid Motor 1 -G745-
- Right: Rear Lid Drive Unit 2 -VX77- with integrated Rear Lid Motor 2 -V445- and Sensor in Rear Lid Motor 2 -G746-
- Removing and Installing. Refer to REAR LID DRIVE UNITS Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to REAR LID DRIVE UNIT Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, ADAPTING .
- Dispose. Refer to PREPARE THE Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77- FOR DISPOSAL. .
- Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
- Mount
- With ball pin
- Locking Element
- For the closing assist
- Rear Lid Closing Aid -VX16-
- Removing and Installing. Refer to Rear Lid Closing Aid -VX16-, REMOVING AND INSTALLING .
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Rear Lid Control Head -EX58-
- With integrated Rear Lid Lock Button in Luggage Compartment -E406-, Locking Mechanism Button in the Rear Lid -E806-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Rear Lid Lock Unit -VX25-
- Overview. Refer to OVERVIEW - REAR LID .
- Striker
- Overview. Refer to OVERVIEW - REAR LID .
- Mount
- For locking ring closing assist
