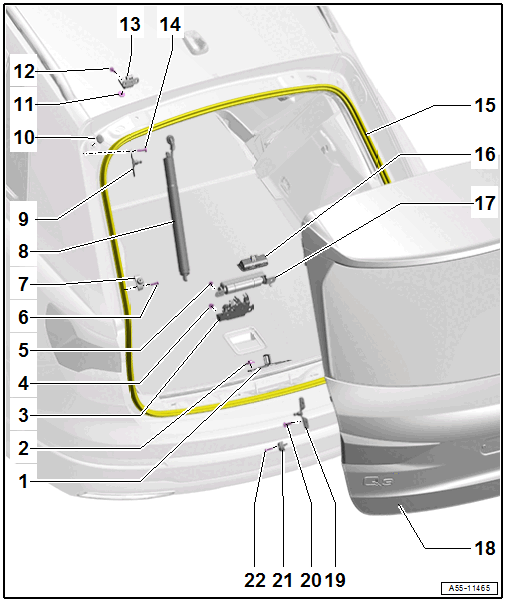

Overview - Rear Lid
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
- Nut
- Quantity: 2
- 21 Nm
- Rear Lid Lock Unit -VX25-
- With integrated Rear Lid Central Locking System Motor -V53-, Rear Lid Alarm Switch -F123-, Rear Lid Lock Cylinder/Anti-Theft Alarm/Central Locking Contact Switch -F124-
- Removing and Installing. Refer to REAR LID LOCK, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 21 Nm
- Nut
- Quantity: 2
- 8 Nm
- Bolt
- 8 Nm
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Gas-Filled Strut
- Equipment versions with gas-filled strut. Refer to GAS-FILLED STRUT, VENTING for removing and Installing and Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING for venting.
- Equipment versions with rear lid motor. Refer to OVERVIEW - ELECTRIC REAR LID RELEASE for the overview.
- Mount
- With ball pin
- Grommet
- For the equipment version with gas-filled strut
- Nut
- 20 Nm
- Bolt
- Quantity: 2
- 12 Nm
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 21 Nm
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING .
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Balance Weight
- Rear Lid
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Mount
- With ball pin
- Bolt
- Quantity: 2
- 21 Nm
- Stop
- For the adjusting buffer
- Removing and Installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
