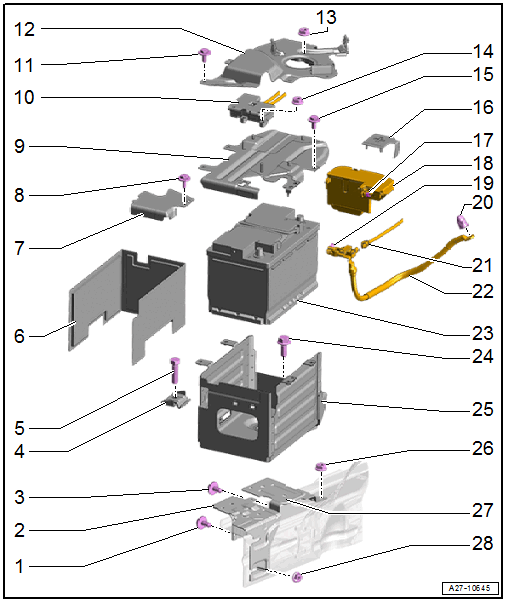

Overview - Battery -A- Inside Engine Compartment (0K2)
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 8 Nm
- Front Mount
- For battery tray
- Bolt
- 8 Nm
- Bracket
- Bolt
- 18 Nm
- Heat Shield Boot
- Cap
- For the ground wire
- Bolt
- 9 Nm
- Quantity: 2
- Cap
- For battery tray
- Terminal 30 Wire Junction 3 -TV28-
- Overview. Refer to OVERVIEW - RELAY PANEL, FUSE PANEL, E-BOXES, ENGINE COMPARTMENT G-TRON .
- Bolt
- Tightening specification. Refer to OVERVIEW - ENGINE CONTROL MODULE [CWGD] / OVERVIEW - ENGINE CONTROL MODULE [CYMC] .
- Quantity: 2
- Mount
- For the engine control module
- Nut
- Tightening specification. Refer to OVERVIEW - ENGINE CONTROL MODULE [CWGD] / OVERVIEW - ENGINE CONTROL MODULE [CYMC] .
- Quantity: 3
- Nut
- Tightening specification OVERVIEW - RELAY PANEL, FUSE PANEL, E-BOXES, ENGINE COMPARTMENT G-TRON
- Quantity: 2
- Bolt
- 9 Nm
- Positive Terminal Cover
- Nut
- 5 Nm
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to Battery -A-, REMOVING AND INSTALLING, 0K2 .
- Nut
- 6 Nm
- Nut
- 20 Nm
- Wire
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to Connecting .
- Ground Wire
- With Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K2 .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, 0K2 .
- Battery -A-
- Checking. Refer to Battery, Checking .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, 0K2 .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Quantity: 4
- Battery Tray
- Removing and Installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING, 0K2 .
- Nut
- 20 Nm
- Quantity: 2
- Rear Mount
- For battery tray
- Nut
- 8 Nm
- Quantity: 2
Battery Tray - Tightening Specification and Sequence (0K2)
-- Tighten the screws to 18 Nm in the sequence: -1 to 4-.
