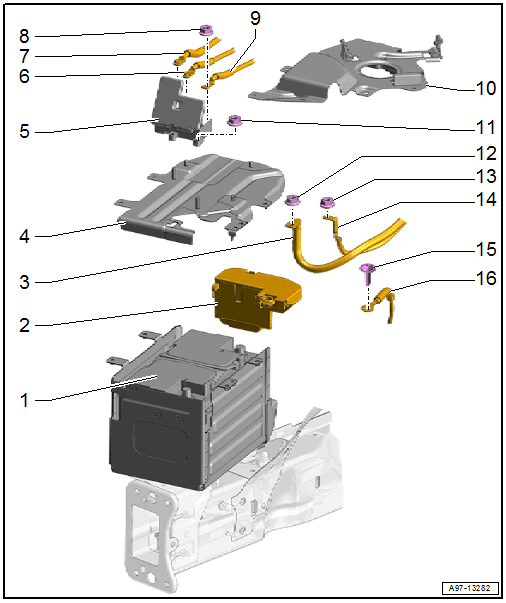

Overview - Relay Panel, Fuse Panel, E-Boxes, Engine Compartment G-Tron
WARNING: This page is about a different variant/trim than selected.
- Battery
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Cap
- For battery tray
- Terminal 30 Wire Junction 3 -TV28-
- Removing and Installing. Refer to Terminal 30 Wire Junction 3 -TV28-, REMOVING AND INSTALLING .
- Line
- 5 Nm.
- Allocation. Refer to the appropriate Wiring Diagram.
- Line
- 5 Nm.
- Allocation. Refer to the appropriate Wiring Diagram.
- Nut
- 18 Nm
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Mount
- For the engine control module
- Nut
- 3.5 Nm
- Quantity: 2
- Nut
- 5 Nm
- Nut
- 7.5 Nm
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Bolt
- 5 Nm
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
