Overview - Seat Heating Element, Super Sport Seat

WARNING: This page is about a different variant/trim than selected.

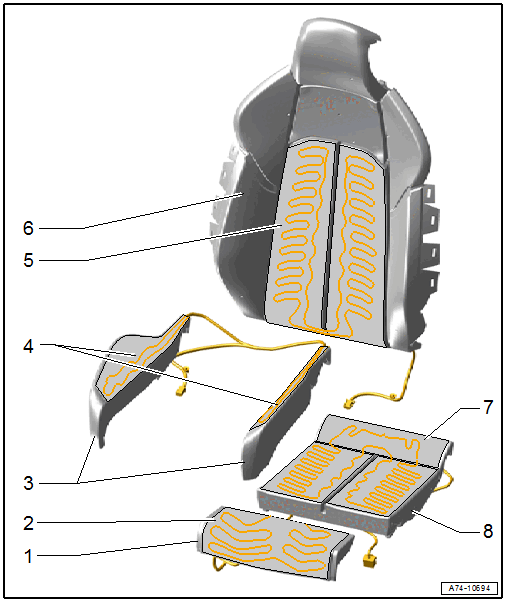

Fig 1: Exploded View Of Seat Heating Element, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Cushion
- For the seat depth adjustment
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
Seat Extension Heating Element
- Left Front Seat Extension Heating Element -Z168-
- Right Front Seat Extension Heating Element -Z169-
- Replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
Seat Bolster Cushion
- Removing and Installing. Refer to SEAT PAN SEAT BOLSTER CUSHION, REMOVING AND INSTALLING, SUPER SPORT SEAT .
Seat Bolster Heating Element
- Driver seat:
  - Left Seat Bolster Heating for Left Front Seat -Z151-
  - Right Seat Bolster Heating for Left Front Seat -Z152-
- Front passenger seat:
  - Left Seat Bolster Heating for Right Front Seat -Z153-
  - Right Seat Bolster Heating for Right Front Seat -Z154-
- Replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT BOLSTERS .
Backrest Heating Element
- Left Front Seat Heated Backrest -Z116-
- Right Front Seat Heated Backrest -Z117-
- Replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Backrest Cushion
- When replacing, apply a new heating element. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Seat Heating Element
- Left Front Seat Heating Element -Z45-
- Right Front Seat Heating Element -Z46-
- Replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT CUSHION .
Seat Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT CUSHION .
