Seat Heating Element, Removing And Installing, Seat Cushion
The old heating elements remain on the cushion and will be covered over by the new heating elements.
Procedure
- Cover and cushion separated. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
-- Clip the wires directly at the heating elements.
Standard/Sport Seat:

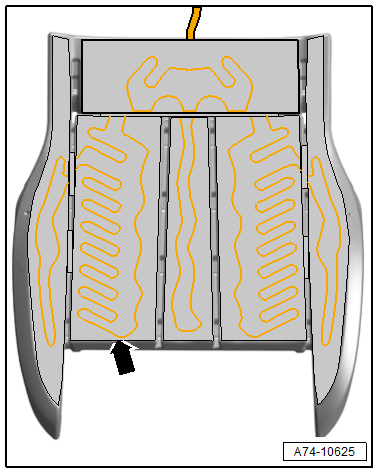

-- Align the new heating elements -arrow- on the cushion.
-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.
-- Glue the heating elements so that they align with the old heating elements and are free of wrinkles.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
The Sport seat is shown.
Super Sport Seat:
-- Align the new heating elements -arrow- on the cushion.
-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.
-- Glue the heating elements so that they align with the old heating elements and are free of wrinkles.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
Further installation is the reverse order of removal.
