Backrest Heating Element, Removing And Installing
The old seat heating element remains on the cushion and will be covered by the new heating element.
Procedure
- Cover and cushion separated. Refer to BACKREST COVER AND CUSHION, SEPARATING .
-- Cut the wire directly on the old heating element.

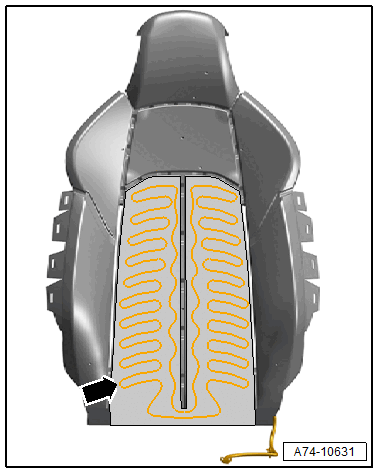

Standard/Sport Seat:
-- Align the new heating element -arrow- on the cushion.
-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.
-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
The Sport seat is shown.

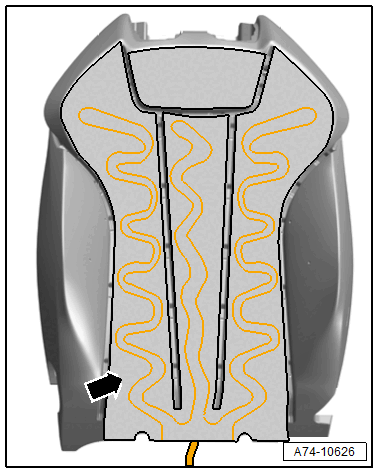

Super Sport Seat:
-- Align the new heating element -arrow- on the cushion.
-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.
-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
Further installation is the reverse order of removal.
