Overview - Seat Heating Element, Standard/Sport Seat

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Sport seat with the seat depth adjuster is shown.

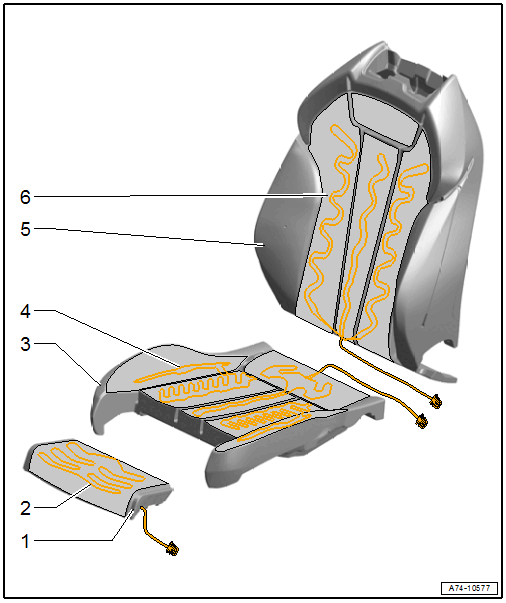

Fig 1: Exploded View Of Seat Heating Element, Standard/Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Cushion
- For the seat depth adjustment
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
Seat Extension Heating Element
- Left Front Seat Extension Heating Element -Z168-
- Right Front Seat Extension Heating Element -Z169-
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
Seat Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT CUSHION .
Seat Heating Element
- Left Front Seat Heating Element -Z45-
- Right Front Seat Heating Element -Z46-
- Replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT CUSHION .
Backrest Cushion
- When replacing, apply a new heating element. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Backrest Heating Element
- Left Front Seat Heated Backrest -Z116-
- Right Front Seat Heated Backrest -Z117-
- Replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
