Component Location Overview - Luggage Compartment Trim Panels, A5 Coupe

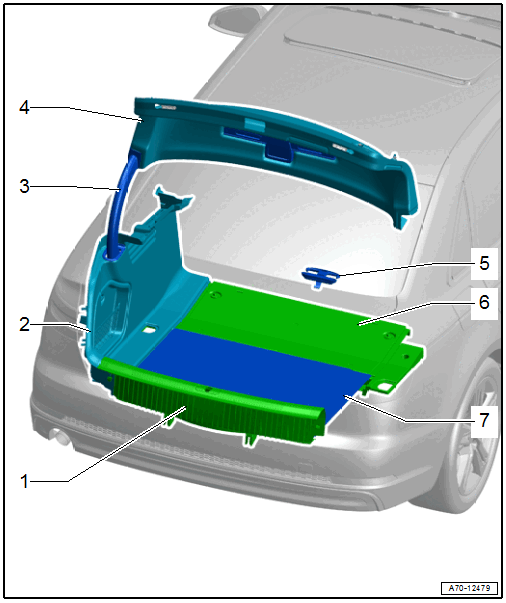

Fig 1: Luggage Compartment Trim Panels, Sedan

Courtesy of AUDI OF AMERICA, LLC

1. Lock Carrier Trim Panel
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, A5 COUPE .
2. Luggage Compartment Side Trim Panel
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, A5 COUPE .
3. Rear Lid Hinge Trim Panel
   • Overview. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL, A5 COUPE .
4. Rear Lid Lower Trim Panel
   • Overview. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL, A5 COUPE .
5. Bag Hooks
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, A5 COUPE .
6. Front Luggage Compartment Floor
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR, A5 COUPE/SPORTBACK EXCEPT A5 G-TRON .
7. Luggage Compartment Floor
   • Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR, A5 COUPE/SPORTBACK EXCEPT A5 G-TRON .
