Overview - Rear Lid Lower Trim Panel, A5 Coupe

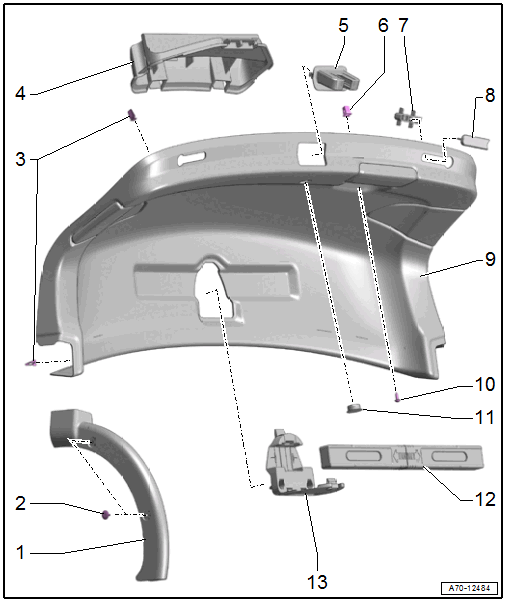

Fig 1: Exploded View Of Rear Lid Lower Trim Panel (A5 Coupe)

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Hinge Trim Panel
   • Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
   • Quantity: 2
2. Expanding Clip
   • Quantity: 4
3. Clip
   • Replace damaged or deformed clips
   • Insert in the trim panel
   • Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool: T40280  . To install, insert into the trim panel.
   • Quantity: 10
4. Anti-Theft Protection
   • Clip into rear lid
   • Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
5. Rear Lid Latch Trim Panel
   • Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
   • Press on until it engages audibly
6. Expanding Nut
   • Clip into rear lid
7. Stop Strip Bracket
   • Clip into rear lid
   • Quantity: 2
8. Stop Strip
   • Clip to the bracket
   • Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
   • Quantity: 2
9. Rear Lid Trim Panel
   • Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, A5 COUPE .
   • Press on until it engages audibly
10. Bolt
    • 2 Nm
11. Emergency Release Cover
    • North American versions: emergency release. Refer to Fig 2.
    • Unclip using a screwdriver
    • Clipped in the rear lid trim panel
12. Emergency Triangle
13. Emergency Triangle Bracket
    • Insert in the rear lid and press on it until it engages audibly

Emergency Release, Market-Specific for North America

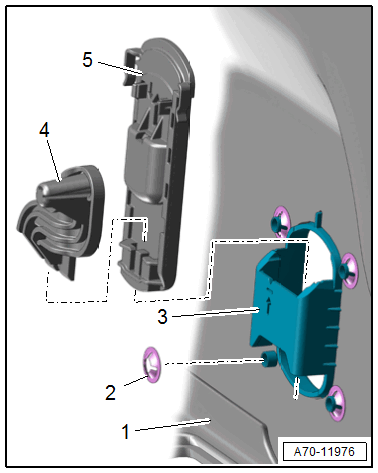

Fig 2: Equipment Versions with Emergency Release

Courtesy of AUDI OF AMERICA, LLC

1 -  Rear Lid Trim Panel

2 -  Lock Washer - Quantity: 4

3 -  Emergency Release Trim

4 -  Emergency Release Lever

5 -  Emergency Release Actuator
