Component Location Overview - Convertible Top Compartment

WARNING: This page is about a different variant/trim than selected.

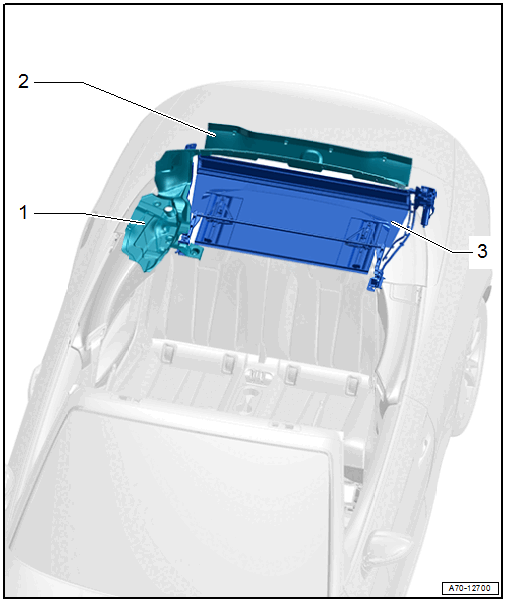

GWWA70-12700Courtesy of AUDI OF AMERICA, LLC
  1. Convertible Top Compartment Side Trim Panel
  2. Convertible Top Compartment Center Trim Panel
  3. Convertible Top Compartment Enclosure
