Overview - Convertible Top Compartment Enclosure

WARNING: This page is about a different variant/trim than selected.

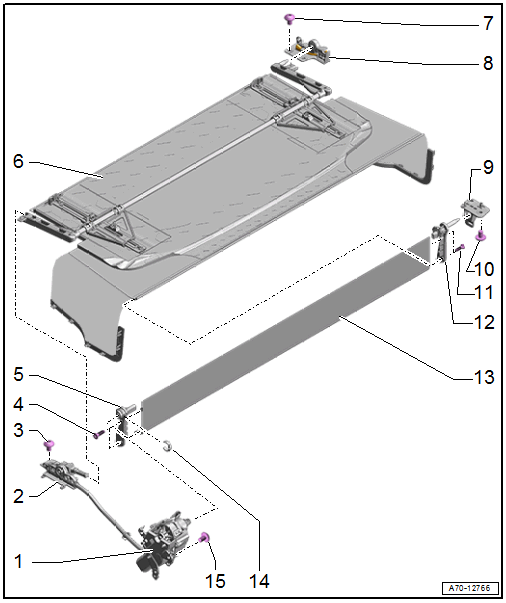

Fig 1: Exploded View Of Convertible Top Compartment Enclosure

Courtesy of AUDI OF AMERICA, LLC

Left Convertible Top Compartment Enclosure Motor -V433-
- With Lower Convertible Top Compartment Enclosure Left Switch -E897-
- Removing and Installing. Refer to Left Convertible Top Compartment Enclosure Motor -V433-, REMOVING AND INSTALLING .
Left Mounting Bracket with Lever
- Only available with Left Convertible Top Compartment Enclosure Motor -V433- -item 1-
- Removing and Installing. Refer to Left Convertible Top Compartment Enclosure Motor -V433-, REMOVING AND INSTALLING .
- Hook into the body
Bolt
- 8 Nm
- Quantity: 2
Bolt
- 1.8 Nm
- Included in the repair kit
- Quantity: 2
Left Bearing
- For the trim
- Included in the repair kit
- Repairing, replace the bearing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE TRIM, REMOVING AND INSTALLING .
Convertible Top Compartment Enclosure
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
Right Front Mounting Bracket
- With Lower Convertible Top Compartment Enclosure Right Switch -E898-
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE FRONT MOUNTING BRACKET, REMOVING AND INSTALLING .
Right Rear Mounting Bracket
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE REAR MOUNTING BRACKET, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
Bolt
- 1.8 Nm
- Included in the repair kit
- Quantity: 2
Right Bearing
- For the trim
- Included in the repair kit
- Repairing, replace the bearing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE TRIM, REMOVING AND INSTALLING .
Trim
- For the convertible top compartment enclosure
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT ENCLOSURE TRIM, REMOVING AND INSTALLING .
Clip
- Remove with a small screwdriver
Bolt
- 8 Nm
- Quantity: 3
