Heated Seat Elements

Vehicles without Power Seats

NOTE:

Always refer to appropriate wiring diagram when performing electrical repairs.

Removing Seat Element

-- Remove seat. Refer to FRONT SEAT, MANUAL .

-- Disconnect electrical wiring to seat.

-- Remove plug connector from seat frame.

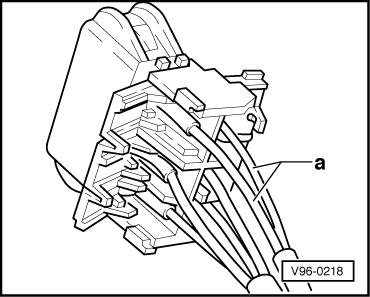

-- Open locking tabs, pull out wires -a- for seatback element.

Courtesy of AUDI OF AMERICA, LLC

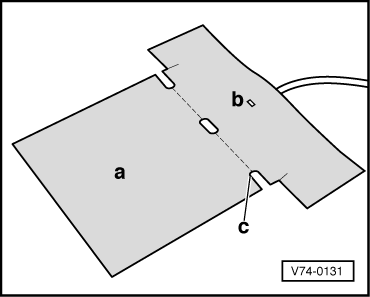

-- Cut element at -c-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove section -b-, with connecting wire.

Section -a- remains on padding.

Installing Seat Element

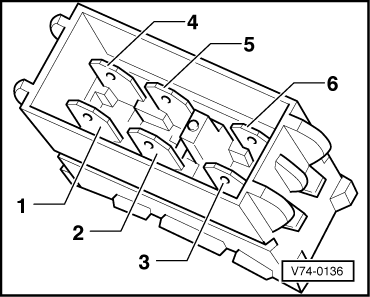

Plug Connector, Identification

Courtesy of AUDI OF AMERICA, LLC

Seat heat element
Temperature sensor
Seatback heat element
Temperature sensor
Seat heat element
Seatback heat element

-- Glue replacement element onto seat.

Removing Seatback Element

-- Remove seat. Refer to FRONT SEAT, MANUAL .

-- Disconnect wiring for seatback element.

-- Remove seatback. Refer to FRONT BACKREST ASSEMBLY OVERVIEW .

-- Remove seatback cover. Refer to Front Seatback .

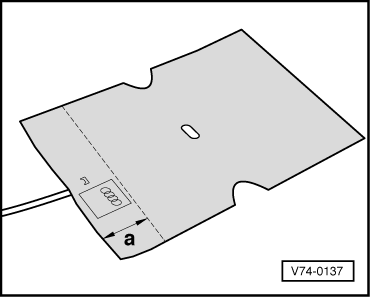

-- Cut glued backrest element as shown.

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = approx. 8.0 cm (3.15 in.)

-- Remove cut section with electrical connector.

Installing Seatback Element

-- Glue replacement element onto seat.

Removing Rear Seat Element

-- Remove rear seat bench.

-- Pull connecting wires for malfunctioning heat element out of harness connector.

-- Fold back left or right half of cover, depending on repair.

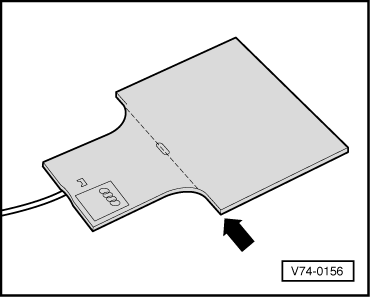

-- Cut element at -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove cut section with electrical connector.

Other section remains on cushion

Installing Rear Seat Element

-- Glue replacement element onto seat.

Removing Rear Seatback Element

-- Remove rear seat. Refer to REAR BACKREST ASSEMBLY OVERVIEW .

-- Remove rear backrest. Refer to REAR BACKREST ASSEMBLY OVERVIEW .

-- Pull connecting wires for malfunctioning heat element out of harness connector.

-- Fold back left or right half of cover, depending on repair.

-- Cut glued backrest element as shown.

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = approx. 8.0 cm (3.15 in.)

-- Remove section with electrical connector.

Installing Rear Seatback Element

-- Glue replacement element onto seat.

Vehicles with Power Seats

Seat Element, Removing

-- Remove seat.

-- Remove backrest.

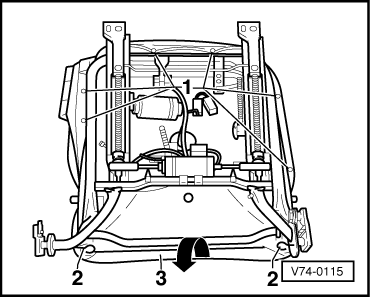

-- Unhook tensioner wire -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out seat cover reinforcement -3-.

-- Pry out clips -1-.

-- Fold back seat cover.

-- Cut wire clips, as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Remove seat cover.

-- Cut element at -c-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove section -b-, with connecting wire.

Section -a- remains on padding.

Seat Element, Installing

-- Glue replacement element onto seat.

Seat Backrest Element, Removing

-- Remove seat.

-- Remove seatback. Refer to FRONT BACKREST ASSEMBLY OVERVIEW .

-- Remove backrest cover. Refer to Front Seatback .

-- Cut glued backrest element as shown.

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = approx. 8.0 cm (3.15 in.)

-- Remove cut section with electrical connector.

Seat Backrest Element, Installing

-- Glue replacement element onto seat.

Edition 05272010
