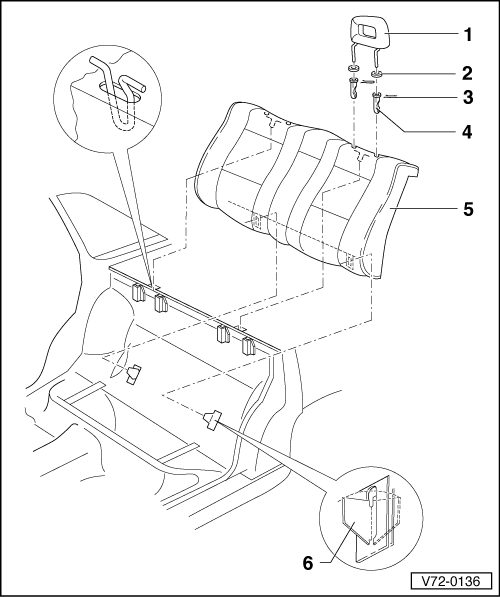

Rear Backrest Assembly Overview
- Head Restraint
- Pull out clips to remove.
- Cap
- Clip
- Guide
- After removing head restraint, push out upward from rear with screwdriver.
- Rear Seatback
To remove
-- Bend over tabs REAR BACKREST ASSEMBLY OVERVIEW.
-- Unplug connector for heated seatback, if applicable.
-- Remove seatback upward.
To install:
-- Install in reverse order of removal.
- Metal Tab
- Only bend outward when installing rear seatback.
