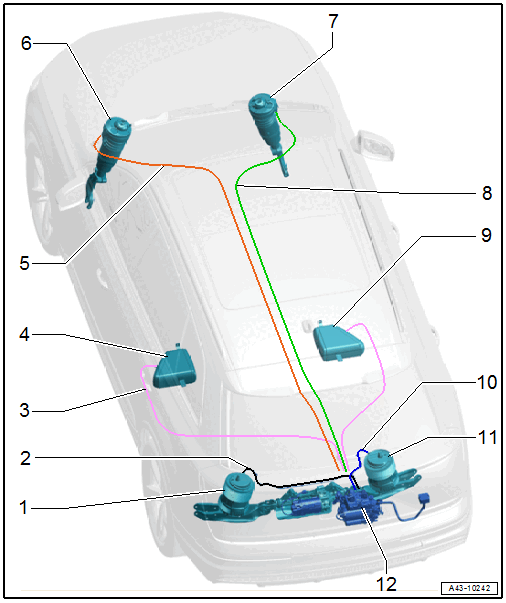

Component Location Overview - Air Suspension

Courtesy of AUDI OF AMERICA, LLC

1. Left Rear Air Spring
   • With Left Rear Damping Adjustment Valve -N338-
   • Overview. Refer to OVERVIEW - SUSPENSION STRUT, SHOCK ABSORBER, SPRING AND AIR SPRING .
2. "Black" Air Line
3. "Purple" Air Line
4. Left Pressure Reservoir
   • Under the carpet in the rear left footwell
   • Removing and Installing. Refer to PRESSURE RESERVOIR, REMOVING AND INSTALLING .
5. "Red" Air Line
6. Left Front Air Spring
   • With Left Front Damping Adjustment Valve -N336-
   • Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
7. Right Front Air Spring
   • With Right Front Damping Adjustment Valve -N337-
   • Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
8. "Green" Air Line
9. Right Pressure Reservoir
   • Under the carpet in the rear right footwell
   • Removing and Installing. Refer to PRESSURE RESERVOIR, REMOVING AND INSTALLING .
10. "Blue" Air Line
11. Right Rear Air Spring
    • With Right Rear Damping Adjustment Valve -N339-
    • Overview. Refer to OVERVIEW - SUSPENSION STRUT, SHOCK ABSORBER, SPRING AND AIR SPRING .
12. Air Supply Unit with Level Control System Compressor Motor -V66-
    • Overview. Refer to OVERVIEW - AIR SUPPLY UNIT .
