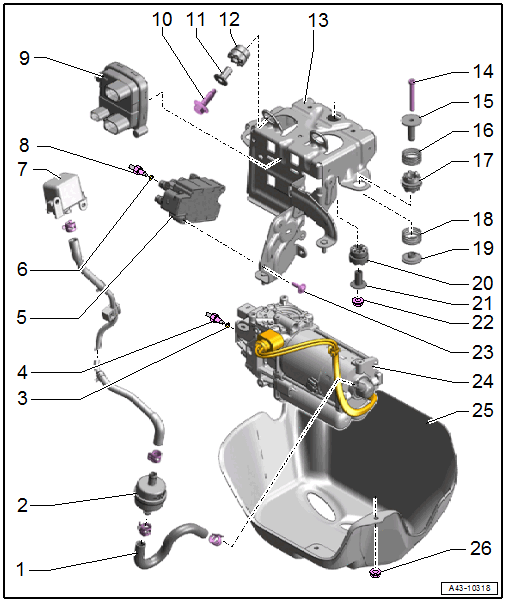

Overview - Air Supply Unit
- Hose
- Filter
- Removing and Installing. Refer to FILTER, REMOVING AND INSTALLING .
- Cutting Ring
- Air Line
- Air lines overview COMPONENT LOCATION OVERVIEW - AIR SUSPENSION
- Connecting piece tightening specification. Refer to OVERVIEW - AIR LINES .
- Solenoid Valve Block
- Line arrangement. Refer to OVERVIEW - AIR LINES .
- Removing and Installing. Refer to SOLENOID VALVE BLOCK, REMOVING AND INSTALLING .
- Cutting Ring
- Muffler
- Component location in the vehicle interior right wheel housing (spare tire well)
- Air Line
- Air lines overview COMPONENT LOCATION OVERVIEW - AIR SUSPENSION
- Connecting piece tightening specification. Refer to OVERVIEW - AIR LINES .
- Level Control System Compressor Electronics -J1135-
- Removing and Installing. Refer to Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Quantity: 2
- Spacer Sleeve
- Grommet
- Bracket
- For the air supply unit
- Bolt
- 5 Nm
- Spacer Sleeve
- Spring
- Grommet
- Spring
- Spring Support
- Grommet
- Spacer Sleeve
- Nut
- 9 Nm
- Bolt
- 4 Nm
- Air Supply Unit with Level Control System Compressor Motor -V66-
- Removing and Installing. Refer to AIR SUPPLY UNIT, REMOVING AND INSTALLING .
- Cover
- Nut
- 9 Nm
