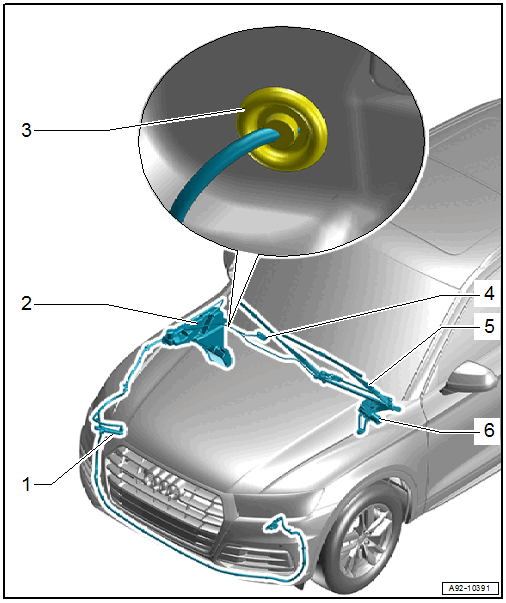

Component Location Overview - Windshield Wiper System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Washer System Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Nozzle
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Windshield Wiper Arm
- RHD: is a mirror image
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Windshield Wiper Motor -V-
- RHD: is a mirror image
- With the Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
