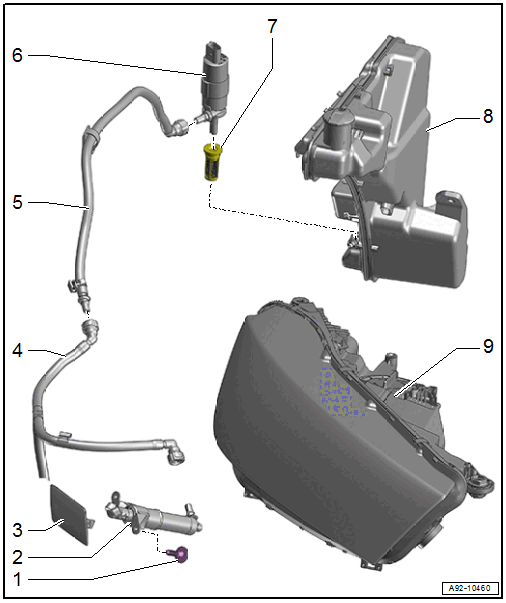

Overview - Headlamp Washer System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- 2 Nm
- Washer Nozzle
- Are already adjusted by the manufacturer and must not be adjusted after installation.
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Cover
- For the headlamp washer system washer nozzle
- Washer Fluid Hose Distributor
- To the spray nozzles
- Washer Fluid Hose
- From the headlamp washer system pump
- Headlamp Washer System Pump -V11-
- Removing and Installing. Refer to Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Headlamps
