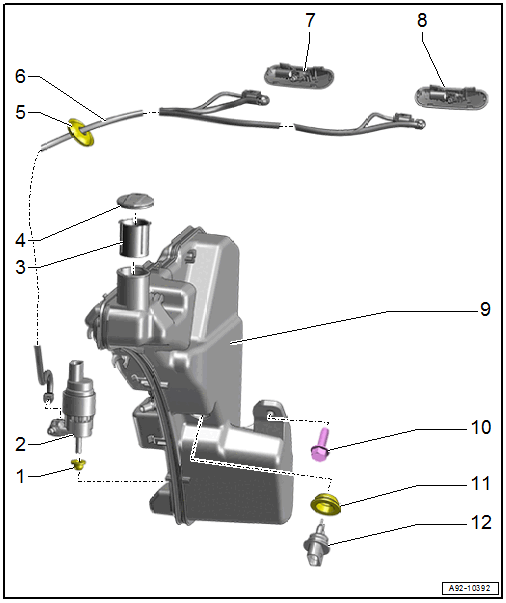

Overview - Windshield Washer System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Replace if damaged
- Windshield Washer Pump -V5-
- For the front and rear window washer system
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Screen
- Cap
- For the filler neck
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Hose
- To the spray nozzles
- Right Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Grommet
- Replace if damaged
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
