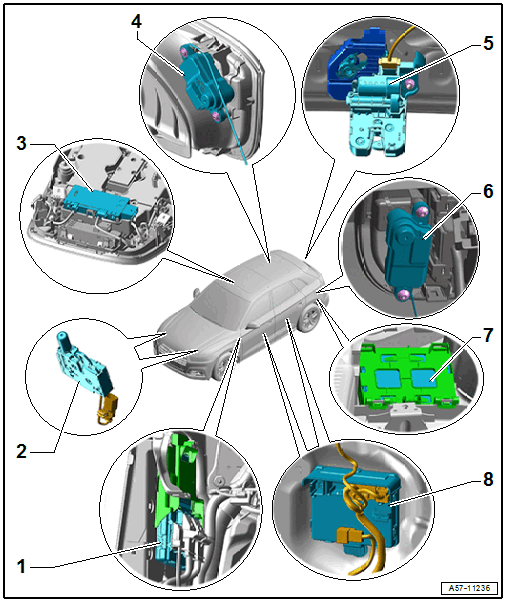

Component Location Overview - Central Locking
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Engine Hood Contact Switch
- In the latch
- Engine Hood Contact Switch -F266-, Hood Contact Switch 2 -F329-
- Removing and Installing. Refer to Engine Hood Contact Switch -F266- /Hood Contact Switch 2 -F329-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Latch
- Rear Lid Lock Unit -VX25-
- With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
- Overview. Refer to OVERVIEW - REAR LID .
- High-Voltage Charge Door Lock 1 Adjuster -F496-
- Removing and Installing. Refer to High-Voltage Charge Door Lock 1 Adjuster -F496-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Door Control Modules
- Driver Door Control Module -J386- and Front Passenger Door Control Module -J387-, Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Driver Side Rear Door Control Module -J926-, Passenger Side Rear Door Control Module -J927-, Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
