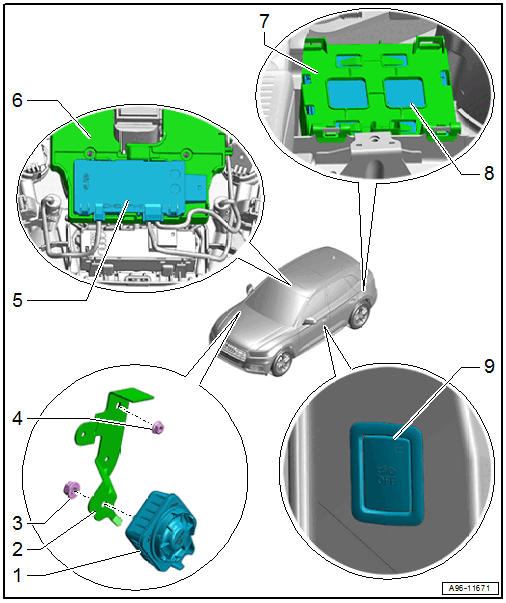

Overview - Interior Monitoring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Alarm Horn -H12-
- Removing and Installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
- Bracket
- For Alarm Horn -H12-
- Nut
- 7 Nm
- Nut
- Quantity: 2
- 8 Nm
- Anti-Theft Alarm System Sensor -G578-
- With interior monitoring individual sensor
- Removing and Installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Bracket
- For the comfort system central control module
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- RHD: is a mirror image
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
