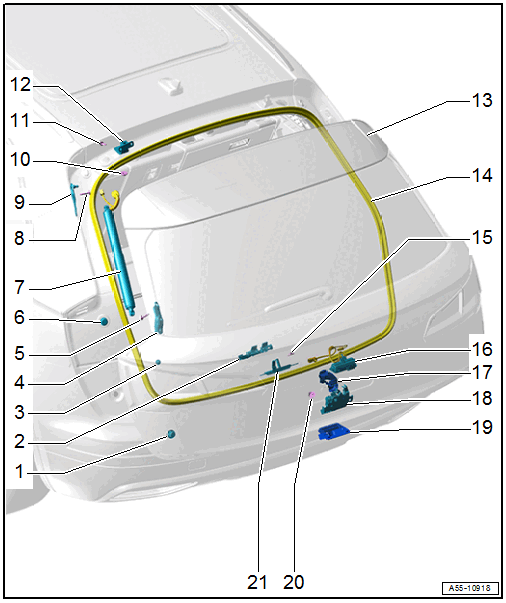

Overview - Rear Lid
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, REAR LID SIDE .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Rear Lid -Closed- Sensor
- Rear Lid -Closed- Sensor 1 -G525-, Rear Lid -Closed- Sensor 2 -G526-
- Removing and installing. Refer to OVERVIEW - BODY TAIL LAMPS .
- Stop
- For the adjusting buffer
- Mount
- With ball pin
- Bolt
- Quantity: 2
- 30 Nm
- Adjusting Buffer
- Installed, depending on the version
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, BODY SIDE .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Gas-Filled Strut
- Equipment versions with gas-filled strut. Refer to GAS-FILLED STRUT, VENTING for removing and Installing and GAS-FILLED STRUT, REMOVING AND INSTALLING for venting.
- Equipment versions with rear lid motor. Refer to OVERVIEW - ELECTRIC REAR LID RELEASE for the overview.
- Bolt
- Quantity: 2
- 30 Nm
- Mount
- With ball pin
- Nut
- 35 Nm
- Bolt
- Quantity: 2
- 12 Nm
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Rear Lid
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 21 Nm
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- Anti-Theft Protection
- For the latch
- Latch
- Rear Lid Lock Unit -VX25-
- With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 21 Nm
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
