Height Adjustment At Striker

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Procedure

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Before adjusting, screw in the lid side adjusting buffer completely. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .

TIP:

The rear height can be adjusted by sliding the striker.

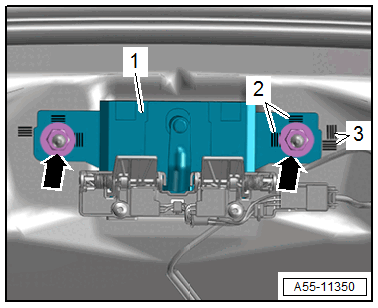

-- Loosen the nuts -arrows-.

Courtesy of AUDI

-- Move the striker -1-.

Use the markings on the striker -2- and on the body -3- for the adjustment.

-- Close the lid and check the closing position.

-- If necessary, adjust the closing position using the adjusting buffer.

-- The rear lid latch must be engaged in the main detent (second catch) at the same time.

-- Open the lid and tighten the nuts.

-- Adjust the adjusting buffer. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .

Tightening Specifications

Refer to OVERVIEW - REAR LID
