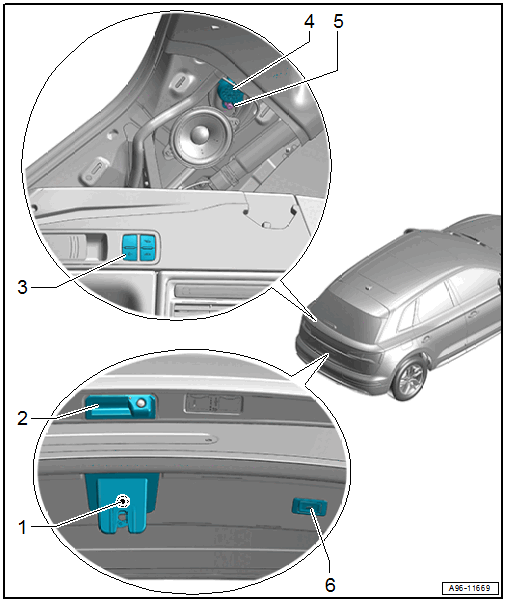

Component Location Overview - Controls In Luggage Compartment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Lid Contact Switch
- Integrated in the rear lid latch. Cannot be replaced separately if faulty.
- Replace the rear lid latch. Refer to LATCH, REMOVING AND INSTALLING .
- Release Button In Rear Lid Handle -E234-
- Removing and Installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING .
- Controls
- For Loading Sill Lowering Control Head -E682- /Power Pivoting Trailer Hitch Button -E474-
- Removing and Installing. Refer to Loading Sill Lowering Control Head -E682- /Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
- Rear Lid Warning Buzzer -H32-
- The buzzer is activated by closing the rear lid using the rear lid remote release button in the front door
- Different component locations
- Q5: left D-pillar
- Q5 Sportback: right luggage compartment
- Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
- Rear Lid Lock Button in Luggage Compartment -E406-
- Depending on vehicle equipment with Locking Mechanism Button in the Rear Lid -E806-.
- Removing and Installing. Refer to Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING .
