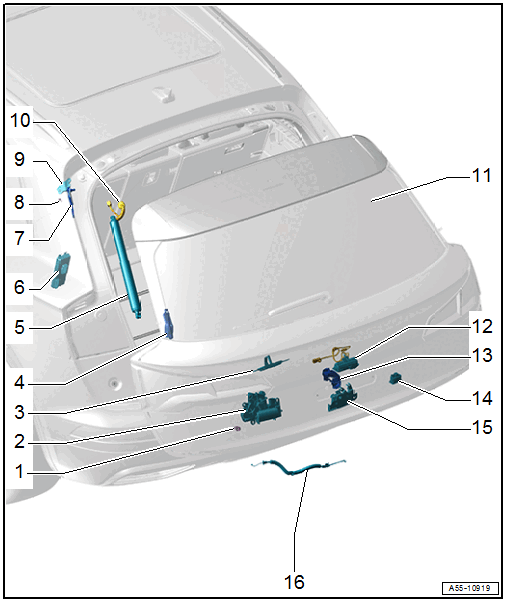

Overview - Power Rear Lid Opener
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Locking Element
- For the closing assist
- Rear Lid Closing Assist Motor -V382-
- Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING .
- Striker
- Overview. Refer to OVERVIEW - REAR LID .
- Mount
- With ball pin
- Rear Lid Motor
- Left: Rear Lid Drive Unit -VX69- with Rear Lid Motor 1 -V444- and Sensor in Rear Lid Motor 1 -G745-, Right: Rear Lid Drive Unit 2 -VX77- with Rear Lid Motor 2 -V445- and Sensor in Rear Lid Motor 2 -G746-
- Removing and Installing. Refer to Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, PROGRAMMING .
- Dispose. Refer to PREPARE THE Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77- FOR DISPOSAL. .
- Rear Lid Control Module -J605-
- Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Mount
- With ball pin
- Expanding Clip
- Quantity: 2
- Rear Lid Warning Buzzer -H32-
- Component location: at the right side of the C-pillar
- Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
- Grommet
- Rear Lid
- Overview. Refer to OVERVIEW - REAR LID .
- Release Button In Rear Lid Handle -E234-
- Component Location Overview. Refer to RELEASE BUTTON IN REAR LID HANDLE -E234-, REMOVING AND INSTALLING
- Anti-Theft Protection
- For the latch
- Rear Lid Lock Button in Luggage Compartment -E406-
- Versions with Locking Mechanism Button in the Rear Lid -E806-.
- Removing and installing. Refer to REAR LID LOCK BUTTON IN LUGGAGE COMPARTMENT -E406-, REMOVING AND INSTALLING .
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
