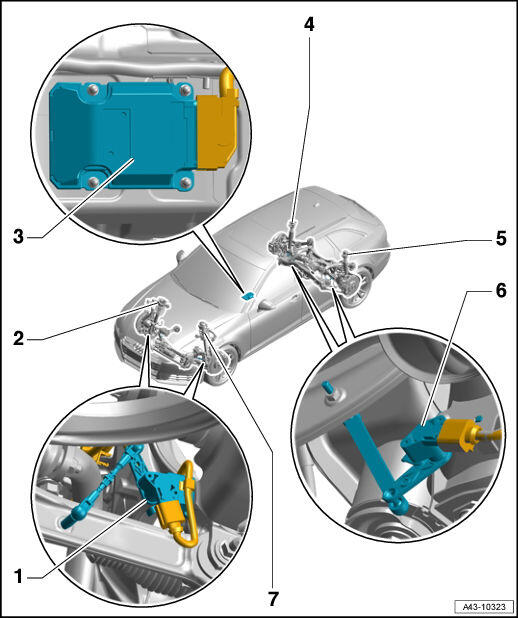

Component Location Overview - Electronic Damping
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- Overview. Refer to OVERVIEW - FRONT LEVEL CONTROL SYSTEM SENSOR .
- Shock Absorber with Right Front Damping Adjustment Valve -N337-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT COIL SPRING .
- Drivetrain Control Module -J775-
- Installation location: on the center tunnel
- Removing and installing. Refer to Drivetrain Control Module -J775-, REMOVING AND INSTALLING .
- Shock Absorber with Right Rear Damping Adjustment Valve -N339-
- Overview. Refer to OVERVIEW - SHOCK ABSORBER .
- Shock Absorber with Left Rear Damping Adjustment Valve -N338-
- Overview. Refer to OVERVIEW - SHOCK ABSORBER .
- Rear Level Control System Sensor
- Left Rear Level Control System Sensor -G76-
- Right Rear Level Control System Sensor -G77-
- Overview. Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
- Shock Absorber with Left Front Damping Adjustment Valve -N336-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT COIL SPRING .
Drivetrain Control ModuleJ775 - Tightening Specification
-- Tighten the nuts -arrows- to 8 Nm.
