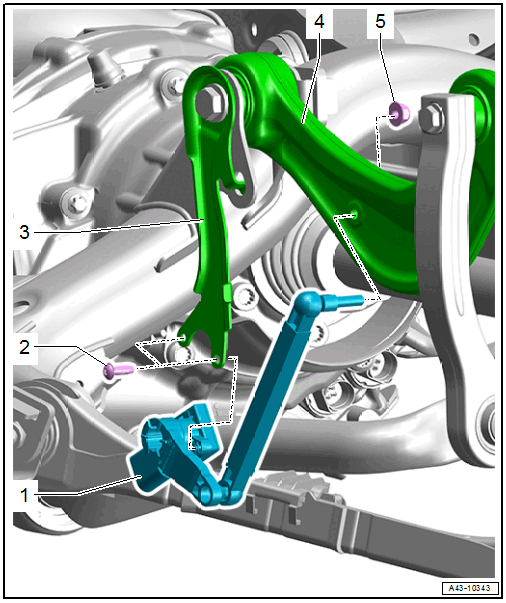

Overview - Rear Level Control System Sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Level Control System Sensor
- Left Rear Level Control System Sensor -G76-
- Right Rear Level Control System Sensor -G77-
- With coupling rod and retaining plate
- Removing and installing. Refer to LEFT AND RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Installation position: sensor coupling rod points toward the rear
- Bolt
- 3 Nm
- Subframe
- Front Upper Transverse Link
- Nut
- 8 Nm
