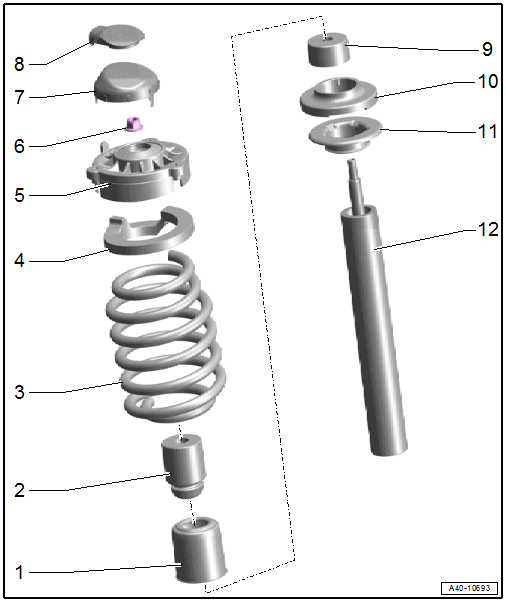

Overview - Suspension Strut Coil Spring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Protective Cover
- Stop Buffer
- Coil Spring
- Spring Support
- Strut Mount
- Installation position. Refer to Fig 2.
- Nut
- 50 Nm
- Replace after removing
- Cap
- Can only be installed in one position
- Cap
- Equipped on some models
- Protective Cap
- Spring Washer
- Lower Spring Plate
- Shock Absorber
- Because of different shock absorber valve systems, only install new shock absorbers from the same manufacturer on both axles, if possible.
- Removing and installing. Refer to SUSPENSION STRUT, SERVICING .
- For equipment versions with electronic damping: "Adapt new control position" using the Vehicle Diagnostic Tester after replacing.
Suspension Strut Coil Spring Installation Position
- The strut mount positioning pin -1- must engage in the hole -2- in the suspension strut tower -arrow-.
