Overview - Air Supply Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

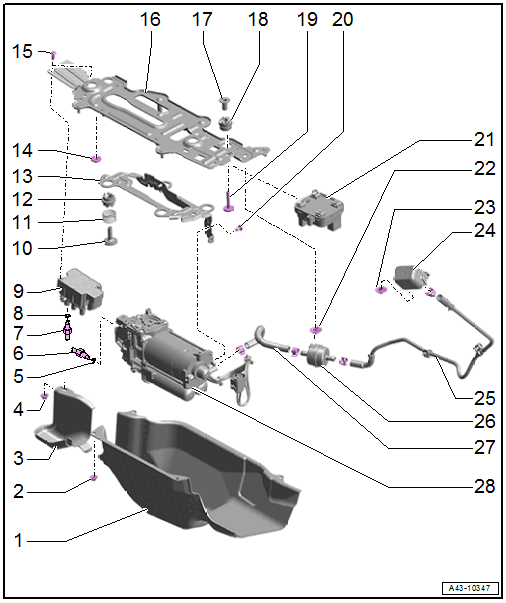

- Cover
- Nut
- 8 Nm
- Cover
- Nut
- 8 Nm
- O-Ring
- Replace after removing
- Air Line
- Air lines overview Refer to COMPONENT LOCATION OVERVIEW - AIR SUSPENSION
- Connecting piece tightening specification. Refer to OVERVIEW - AIR LINES .
- Air Line
- Air lines overview Refer to COMPONENT LOCATION OVERVIEW - AIR SUSPENSION
- Connecting piece tightening specification. Refer to OVERVIEW - AIR LINES .
- O-Ring
- Replace after removing
- Solenoid Valve Block
- Line arrangement. Refer to OVERVIEW - AIR LINES .
- Removing and installing. Refer to SOLENOID VALVE BLOCK, REMOVING AND INSTALLING .
- Flange Nut
- 8 Nm
- Spring
- Rubber Bushing
- Bracket
- For Level Control System Compressor Motor -V66-
- Nut
- 8 Nm
- Bolt
- 4 Nm
- Bracket
- For the air supply unit
- Assembly instructions. Refer to Fig 2
- Spacer Sleeve
- Rubber Bushing
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Level Control System Compressor Electronics -J1135-
- Removing and installing. Refer to Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING .
- Clip
- Nut
- 2 Nm
- Muffler
- On the rear left side behind the wheel housing liner
- Hose
- Filter
- Removing and installing. Refer to FILTER, REMOVING AND INSTALLING .
- Hose
- Level Control System Compressor Motor -V66-
- Removing and installing. Refer to AIR SUPPLY UNIT, REMOVING AND INSTALLING .
- Assembly instructions. Refer to Fig 2

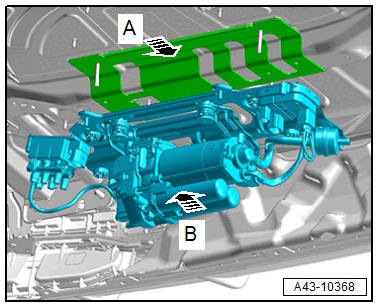

Air Supply Unit Assembly Instructions
-- To tighten the air supply unit bracket, push the bracket toward the rear opposite the direction of travel in direction of -arrow A-.
-- To tighten the air supply unit, push the air supply unit forward in the direction of travel in direction of -arrow B-.
