Component Location Overview - Air Suspension
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

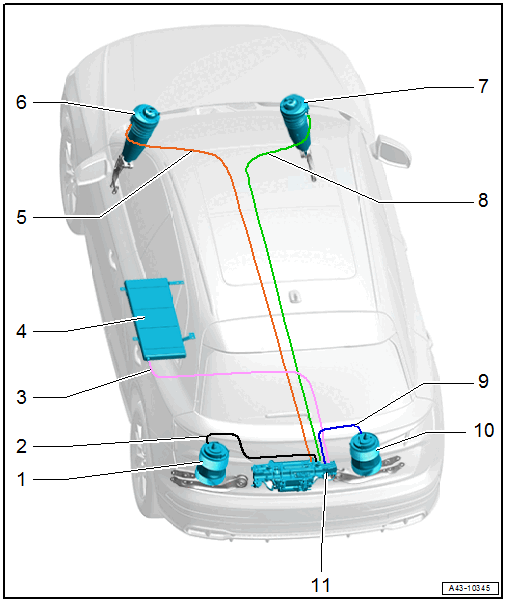

- Left Rear Air Spring
- With Left Rear Damping Adjustment Valve -N338-
- Overview. Refer to OVERVIEW - AIR SPRING .
- "Black" Air Line
- "Purple" Air Line
- Pressure Reservoir
- Under the left underbody trim panel
- Removing and installing. Refer to PRESSURE RESERVOIR, REMOVING AND INSTALLING .
- "Red" Air Line
- Left Front Air Spring
- With Left Front Damping Adjustment Valve -N336-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
- Right Front Air Spring
- With Right Front Damping Adjustment Valve -N337-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
- "Green" Air Line
- "Blue" Air Line
- Right Rear Air Spring
- With Right Rear Damping Adjustment Valve -N339-
- Overview. Refer to OVERVIEW - AIR SPRING .
- Air Supply Unit with Level Control System Compressor Motor -V66-
- Overview. Refer to OVERVIEW - AIR SUPPLY UNIT .
