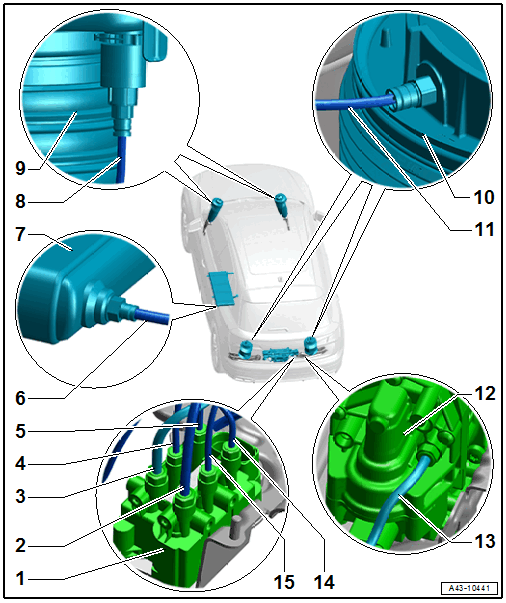

Overview - Air Lines
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Solenoid Valve Block
- "Purple" Air Line
- Connector tightening specification 3 Nm
- From the solenoid valve
- "Brown" Air Line
- Connector tightening specification 3 Nm
- To the air supply unit
- "Green" Air Line
- Connector tightening specification 2 Nm
- To the right front air spring
- "Blue" Air Line
- Connector tightening specification 2 Nm
- To the right rear air spring
- "Purple" Air Line
- Connecting piece tightening specification 3.5 Nm
- For the pressure reservoir
- Pressure Reservoir
- Removing and installing. Refer to PRESSURE RESERVOIR, REMOVING AND INSTALLING .
- Air Line
- Connector tightening specification 2 Nm
- Left "red", right "green"
- From the solenoid valve
- Front air line routing. Refer to Fig 1.
- Do not loosen the residual pressure retaining valve
- Front Air Spring
- Rear Air Spring
- Air Line
- Connector tightening specification 2 Nm
- Left "black", right "blue"
- From the solenoid valve
- If there is a damage claim replace completely. The repair of a damaged air line is not permitted.
- Rear air line routing. Refer to Fig 2.
- Air Supply Unit with Level Control System Compressor Motor -V66-
- Overview. Refer to OVERVIEW - AIR SUPPLY UNIT .
- "Brown" Air Line
- Connector tightening specification 3 Nm
- To solenoid valve block
- "Black" Air Line
- Connector tightening specification 2 Nm
- To the left rear air spring
- "Red" Air Line
- Connector tightening specification 2 Nm
- To the left front air spring
Air Line Routing to the Front Air Spring
-- Contains the air line -5- on the clip -2- in the wiring harness -1-.
3 - Front Air Spring
4 - Residual Pressure Retaining Valve - Do Not Loosen

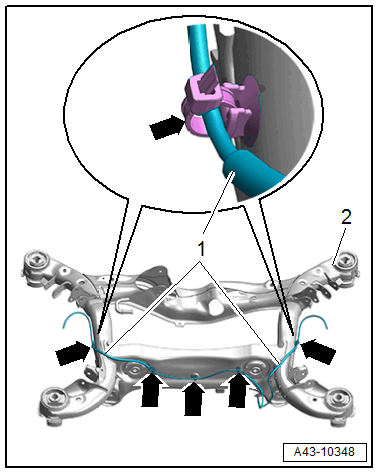

Air Line Routing on the Subframe to the Rear Air Spring
-- Secure the air line -1- with the clips -arrows- on the subframe -2- as shown.
Pressure Reservoir - Tightening Specification
-- Tighten the bolt -arrows- to 20 Nm.
