SUBFRAME, Lowering

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

NOTE:

During installation, all cable ties must be installed at the same location.

Before starting work:

-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

-- Secure the subframe. Refer to SUBFRAME, SECURING .

-- Remove the front lower longitudinal member on the left and right side. Refer to Lock Carrier ; Lower Longitudinal Member, Removing and Installing.

-- Remove the connector -3- from the bracket and disconnect it.

Courtesy of AUDI

-- Loosen the nut -arrow- several turns, and free up and disconnect the connector -2-.

-- Remove the nut -1- and free up the ground wire.

-- Free up the wires to the subframe.

-- Equipment versions with electro-hydraulic engine mount: disconnect the left and right connector -2- for the electrohydraulic engine mount solenoid valve.

Courtesy of AUDI

-- Equipment versions with support bearing: remove the left and right bolt -1- for the support bearing.

NOTE:

The illustration shows the installation position on a vehicle with a 2.0L TFSI engine.

-- If installed, remove the nut -arrow- and free up the bracket -1- with the wiring harness.

Courtesy of AUDI

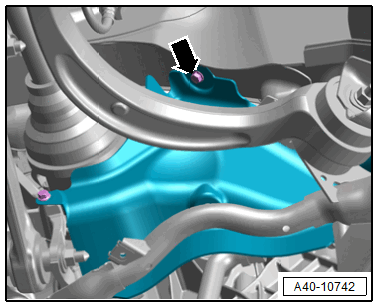

-- Remove the left and right bolts -arrow- for the subframe shield.

Courtesy of AUDI

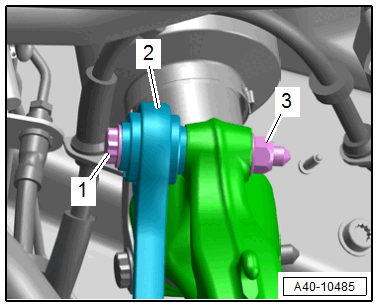

-- Remove the left and right nut -3- and the bolt -1- for the coupling rod -2-.

Courtesy of AUDI

-- Remove the steering intermediate shaft from the steering gear and then push together. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Remove the left and right drive axle from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Equipment versions with electronic damping: disconnect the left and right connector -3- for the level control system sensor and free up the wire.

Fig 1: Identifying Nuts

Courtesy of AUDI

NOTE:

Ignore -items 1 and 2-.

-- If installed, remove the bolts -arrows- from the end panel.

Courtesy of AUDI

-- Equipment versions with SCR system: free up the SCR delivery line -1- on the subframe.

Courtesy of AUDI

-- Remove the left and right bolt -2- and lower the subframe with the Engine and Gearbox Jack:VAS 6931 .

NOTE:

Make sure there is enough clearance for the wires when lowering the subframe.

If required for other procedures, tie up the subframe to the body with Tensioning Strap:T10038 and remove the Engine and Gearbox Jack:VAS 6931 .

Installing

Install in the reverse order of removal while noting the following:

-- Remove the Locating Pins:T40327 . Refer to SUBFRAME, SECURING .

-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

NOTE:

Bonded rubber bushings have a limited range of rotation. Only tighten the suspension bolts when the vehicle is in curb weight position or at standard vehicle height.

-- Lifting the wheel bearing in curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).

WARNING:

Risk of accident!

If the vehicle will be driving on the streets, all bolts and nuts must be tightened properly according to the guidelines.

-- Connections and wire routing. Refer to the appropriate Wiring Diagram.

Tightening Specifications
