Overview - SUBFRAME
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

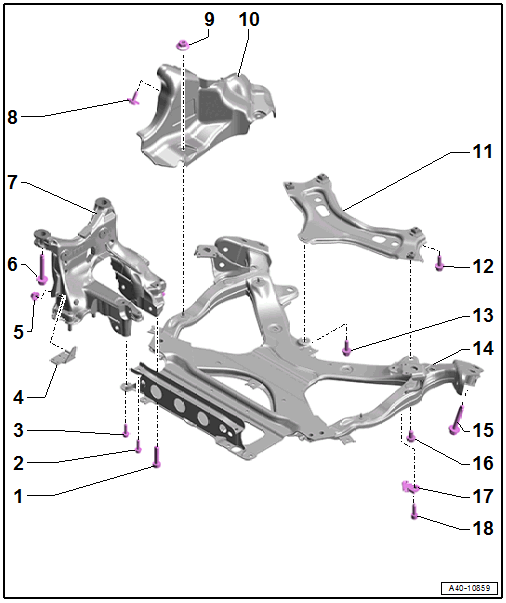

Subframe
CAUTION:
There is a risk of damaging the threads on the subframe/crossbrace threaded connection to the body.
- The subframe/crossbrace bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.
There is a risk of damaging the suspension components.
- If the assembly mount, steering gear or subframe crossbrace are not installed correctly, do not rest the vehicle on its wheels.
- Supporting the vehicle at the subframe or the subframe crossbrace (for example, using a floor jack or similar device) is not permitted.
- Bolt
- 90 Nm +90°
- Replace after removing
- Tightening sequence. Refer to Fig 1.
- Bolt
- 20 Nm +90°
- Replace after removing
- Tightening sequence. Refer to Fig 1.
- Bolt
- 20 Nm +90°
- Replace after removing
- Tightening sequence. Refer to Fig 1.
- Bracket
- For wires
- Nut
- 20 Nm
- Bolt
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Lowering. Refer to SUBFRAME, LOWERING .
- Removing and installing. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Nut
- 9 Nm
- Shield
- Removing and installing. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
- End Panel
- Installed, depending on the version
- Bolt
- 50 Nm + 90°
- Replace after removing
- Bolt
- 30 Nm
- Subframe Crossbrace
- Removing and installing. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .
- Bolt
- Bolt
- 70 Nm +90°
- Replace after removing
- Clip
- Installed, depending on the version
- Allocation. Refer to the appropriate Electronic Parts Information.
- A longer bolt -item 18- OVERVIEW - SUBFRAME must be installed together with the clip
- Bolt
- 50 Nm + 90°
- Replace after removing
- Longer bolt when installing with the clip -item 17- OVERVIEW - SUBFRAME
- Shorter bolt when installing without a clip
- Allocation. Refer to the appropriate Electronic Parts Information.
- Subframe tightening sequence. Refer to Fig 2.
- Crossbrace tightening sequence. Refer to Fig 1.
Subframe Crossbrace - Tightening Sequence
-- Tighten the bolts in steps:
| Step | Bolts | Tightening Sequence |
|---|---|---|
| 1. | -arrows- | Install all the way by hand |
| 2. | -arrows- | Tighten diagonally in stages |

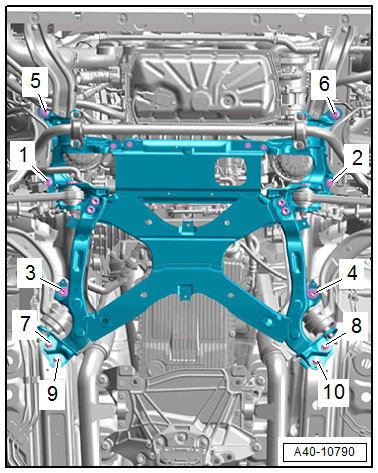

Subframe with Crossbrace - Tightening Sequence
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Sequence |
|---|---|---|
| 1. | -1 through 10- | Install all the way by hand |
| 2. | -1 through 10- | Tighten |

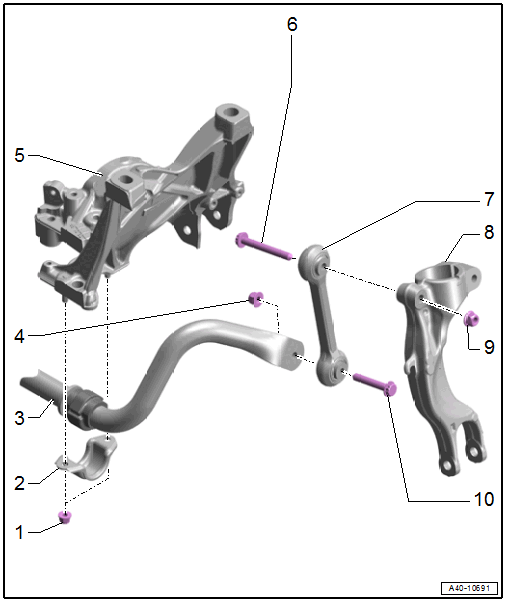

Stabilizer Bar
- Nut
- 30 Nm
- Replace after removing
- Remove and tighten evenly alternating from side to side.
- Clamp
- Stabilizer Bar
- with rubber bushing
- The rubber bushing cannot be replaced separately
- Removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING .
- Nut
- 40 Nm + 90°
- Replace after removing
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Subframe
- Bolt
- Replace after removing
- Coupling Rod
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
- Shock Absorber Fork
- Removing and installing. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
- Nut
- 40 Nm + 90°
- Replace after removing
- Tighten in the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING ) or at the standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).
- Bolt
- Replace after removing
