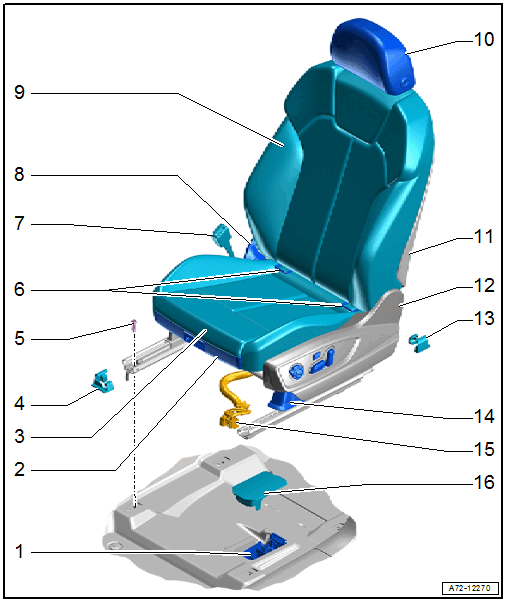

Overview - Front Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Sport seat is shown.
- Connector Station
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Seat Trim in Front
- Refer to OVERVIEW - SEAT PAN, TRIM PANELS
- Seat Pan
- Refer to OVERVIEW - SEAT PAN
- Front Cover
- For the seat rail
- Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING
- Bolt
- Quantity: 4
- Refer to FRONT SEAT, REMOVING AND INSTALLING
- 40 Nm
- Child Seat Anchor
- for the front passenger seat only
- Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS
- Front Seat Belt Latch
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
- Tunnel Side Seat Side Trim
- Refer to OVERVIEW - SEAT PAN, TRIM PANELS
- Backrest
- Refer to OVERVIEW - FRONT BACKREST
- Headrest
- Refer to OVERVIEW - HEADREST
- Backrest Cover
- Refer to OVERVIEW - FRONT BACKREST
- Seat Side Trim on Side Sill
- Refer to OVERVIEW - SEAT PAN, TRIM PANELS
- Rear Cover
- For the seat rail
- Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING
- Center Cover
- Connector
- With a corrugated tube for the modular wiring routing
- Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING
- Cover
- For the connector station
