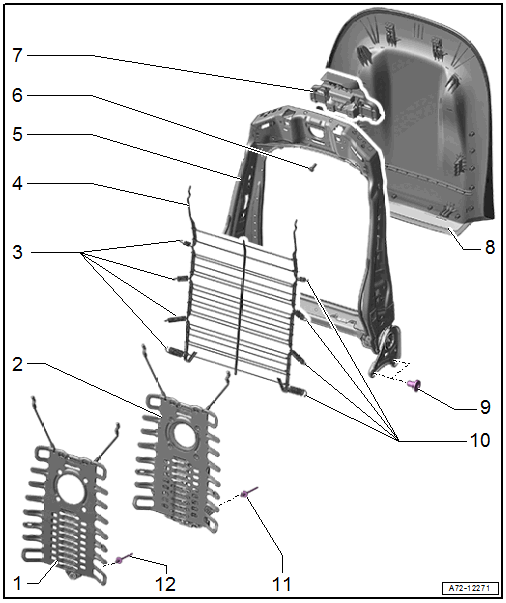

Overview - Front Backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Fixed Lumbar Support
- No motors
- Equipped on some models: power backrest adjustment without lumbar support
- Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING
- Pneumatic/Electromechanical Lumbar Support
- Electromechanical lumbar support: different manufacturers
- Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING
- Equipment version: lumbar support with air cushion. Refer to OVERVIEW - PNEUMATIC SYSTEM .
- Tension Springs
- For spring mat
- Note the different lengths
- Spring Mat
- Equipped on some models: manual backrest adjustment without lumbar support
- Refer to SPRING MAT, REMOVING AND INSTALLING
- Backrest
- Bolt
- Quantity: 2
- 2.5 Nm
- RSE Mount
- For the headrest
- Refer to HEADREST GUIDE, REMOVING AND INSTALLING
- Backrest Cover
- Refer to BACKREST COVER, REMOVING AND INSTALLING
- Make sure it is engaged properly after installing
- Bolt
- Quantity: 4
- Self-locking
- Replace after removing
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- 33 Nm
- Tension Springs
- For spring mat
- Note the different lengths
- Rivet
- Rivet
