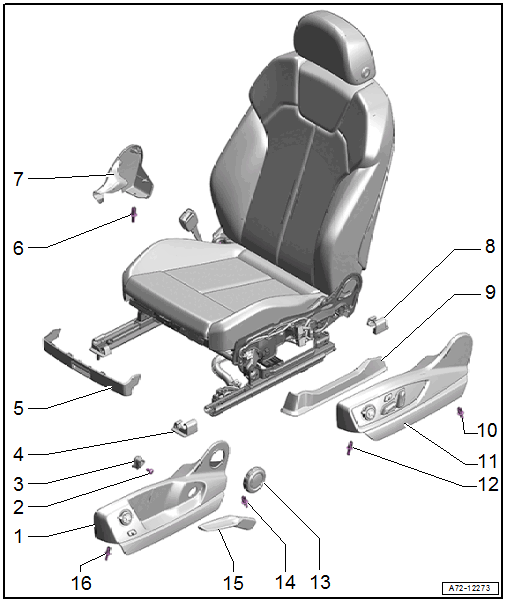

Overview - Seat Pan, Trim Panels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Side Trim on Side Sill
- For the manually adjustable seat
- Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING
- Bolt
- 3.5 Nm
- Adapter
- For the handle of the manual seat height adjustment
- Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING
- Front Cover
- For the seat rail
- Quantity: 2
- Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING
- Front Seat Trim/Handle
- For versions with seat depth adjuster
- Refer to FRONT SEAT TRIM/HANDLE, REMOVING AND INSTALLING
- Expanding Rivet
- Tunnel Side Seat Side Trim
- Rear Cover
- For the seat rail
- Quantity: 2
- Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING
- Center Cover
- For the seat rail
- Clipped in the seat frame
- Refer to CENTER SEAT RAIL COVER, REMOVING AND INSTALLING
- Expanding Rivet
- Seat Side Trim on Side Sill
- For the power adjustable seat
- Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING
- Expanding Rivet
- Hand Wheel
- For the manual backrest adjustment
- Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING
- Expanding Rivet
- Handle
- For the manual seat height adjustment
- Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING
- Before pressing on, check if the spring is inserted in the shaft for seat height adjustment
- Expanding Rivet
