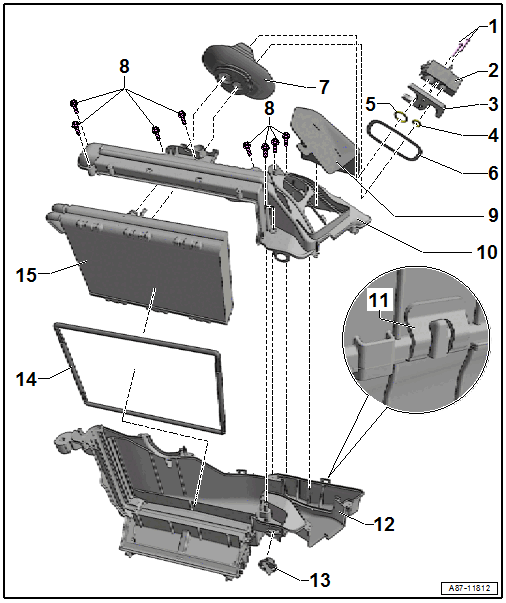

Overview - Evaporator Housing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Currently the evaporator is delivered with the evaporator housing as a replacement part, for this reason do not disassemble the evaporator. If the evaporator is delivered later as a replacement part, then disassemble the evaporator housing. Refer to the Parts Information.
- Screw
- 5.5 Nm
- Removing and Installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Quantity: 2
- Expansion Valve
- Removing and Installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Cover for the expansion valve (vehicles with heater without an A/C system)
- The connections on the expansion valve (for the A/C system refrigerant lines) are connected on vehicles without an A/C system with a closure cap (tightening specification of the nut 8 Nm). Refer to HEATER, DISASSEMBLING AND ASSEMBLING and the Parts Information.
- The expansion valve is installed on a vehicle without an A/C system only to seal the pass-through in the grommet to the vehicle interior.
- Retaining Pate
- Removing and Installing. Refer to EVAPORATOR IN HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- O-Ring
- Replacing. Refer to SEALS AND GASKETS .
- Refer to the Parts Information for the allocation.
- O-Ring
- Replacing. Refer to SEALS AND GASKETS .
- Refer to the Parts Information for the allocation.
- Support Ring
- The support ring increases the pressure of the grommet on the plenum chamber rear panel
- Check the seating of the support ring in the grommet. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Boot
- For sealing the holes through the plenum chamber rear panel for the refrigerant lines
- With support ring for sealing in the plenum chamber rear panel. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Currently a component of the "evaporator housing" replacement part. Refer to Parts Information.
- Screw
- 1 Nm
- Insulation
- Installed between the air duct in the air distribution housing and in the resonator chamber in the air distribution box.
- Evaporator Housing Upper Section
- Catch
- Open carefully
- Evaporator Housing Lower Section
- Both housing halves are held together via the bolts -Item 8- OVERVIEW - HEATER AND A/C UNIT ATTACHMENTS, AIR DISTRIBUTION HOUSING, HEAT EXCHANGER, ETC. List Item:Screw and the catches -Item 6- OVERVIEW - HEATER AND A/C UNIT ATTACHMENTS, AIR DISTRIBUTION HOUSING, HEAT EXCHANGER, ETC. List Item:Catch.
-- Check for debris and if necessary clean before assembling both housing halves.
-- Check the groove and spring connection to the evaporator housing upper section for damage.
- Damaged or incorrectly joined connections can result in noises during operation.
- Both housing halves are held together via the bolts -Item 8- OVERVIEW - HEATER AND A/C UNIT ATTACHMENTS, AIR DISTRIBUTION HOUSING, HEAT EXCHANGER, ETC. List Item:Screw and the catches -Item 6- OVERVIEW - HEATER AND A/C UNIT ATTACHMENTS, AIR DISTRIBUTION HOUSING, HEAT EXCHANGER, ETC. List Item:Catch.
- Cap
- For the connection to the glove compartment cooling
- Only installed on vehicles without the "glove compartment cooling" optional equipment. Refer to AIR DUCT FOR GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .
- Seal
- Check for damage and the correct assembly on the evaporator.
- Evaporator
- Delivered as replacement evaporator part with various components needed for installation (evaporator housing, O-ring seals, expansion valve etc.). Refer to the Parts Information.
- Inspect the bonded foam seals for damage and that it is correctly bonded
- Removing and Installing. Refer to EVAPORATOR IN HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- On a vehicle without an A/C system (only with a heater) the evaporator installed in the heater does not function, it is only works a place holder and to reduce noise.
