Heater, Disassembling And Assembling
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
The disassembly and assembly procedures for the heater are identical to the "Low" A/C system heater and A/C unit. Refer to FRONT HEATER AND A/C UNIT .
- The heater on a vehicle without an A/C system is the same as the heater and A/C unit on vehicles with a "Low" A/C system. The evaporator installed in the heater is without function, here it functions only as a place holder and to reduce noise. Refer to the appropriate Parts Information.

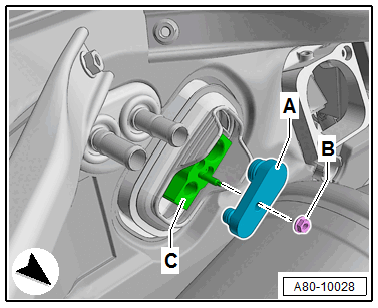

- The expansion valve -C- is installed on a vehicle without an A/C system only to seal the pass-through in the grommet to the vehicle interior.
- The connections on the expansion valve (for the A/C system refrigerant lines) are connected on vehicles without an A/C system with a closure cap -A- (tightening specification of the nut -B- 8 Nm). Refer to the appropriate Parts Information.
