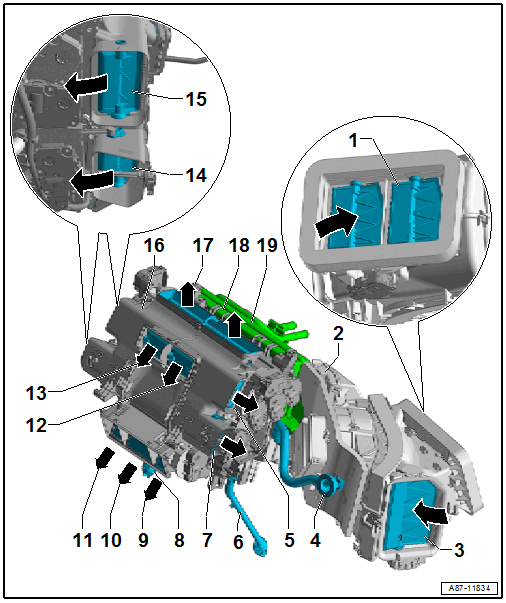

Air Intake And Outlet Openings In Front Heater And A/C Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Fresh Air Intake
- The air is extracted out of the plenum chamber. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
- Air Intake Manifold
- Air Intake from the Vehicle Interior (in Recirculating Air Mode)
- The air is taken from the passenger footwell under the glove compartment.
- Air Duct for Glove Compartment Cooling
- Refer to AIR DUCT FOR GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING
- Without the "glove compartment cooling" optional equipment, the connection is closed with a cap.
- Air Vent to the Vent in the Instrument Panel on the Right Side (and to the Wide Vent)
- Depending on the version of the heating and A/C system the air is guided to different vents. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR FRONT .
- Right Condensation Water Drain
- Air Vent to Right Front Footwell Vent
- Left Condensation Water Drain
- Air Vent to the Air Duct to the Right Footwell Vent
- Equipped on some models, only on a vehicle with a "High" A/C system a door is installed here
- Depending on the setting, different air temperatures for the left and right side are possible. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
- Air Vent to Air Duct under Center of Center Console
- Equipped on some models, only on a vehicle with a "High" A/C system a door is installed here
- On vehicles with a "Low" A/C system (or without an A/C system) here a no door is installed and the opening in the heater and A/C unit is closed. Refer to AIR DUCTS AND VENTS IN THE REAR VEHICLE INTERIOR, "Low" A/C SYSTEM (WITHOUT A/C SYSTEM) .
- Air Vent to the Air Duct to the Left Footwell Vent
- Equipped on some models, only on a vehicle with a "High" A/C system a door is installed here
- Air Vent to the Center Vent of the Right Instrument Panel
- Equipped on some models, on a vehicle with a "High" A/C system a door is installed for the left and the right side respectively
- Equipped on some models, on a vehicle with a "Low" A/C system (or without an A/C system) only one door is installed for the left and the right side
- On the "High" A/C system depending on the adjustment different air temperatures for the left and right side are possible. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
- Air Vent to the Center Vent of the Left Instrument Panel
- Equipped on some models, on a vehicle with a "High" A/C system a door is installed for the left and the right side respectively
- Equipped on some models, on a vehicle with a "Low" A/C system (or without an A/C system) only one door is installed for the left and the right side
- On the "High" A/C system depending on the adjustment different air temperatures for the left and right side are possible. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
- Air Vent to Left Front Footwell Vent
- Air Vent to Vents on Left Side of Instrument Panel
- Front Heater and A/C Unit Air Distribution Housing
- There are different versions. Refer to the Parts Information.
- Refer to OVERVIEW - HEATER AND A/C UNIT
- Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING
- Air Vent to the Left Instrument Panel Defroster Vent
- Air Vent to the Right Instrument Panel Defroster Vent
- Evaporator Housing
- Refer to OVERVIEW - EVAPORATOR HOUSING
- Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING
