AIR DUCTS AND VENTS IN THE REAR VEHICLE INTERIOR, "Low" A/C SYSTEM (WITHOUT A/C SYSTEM)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

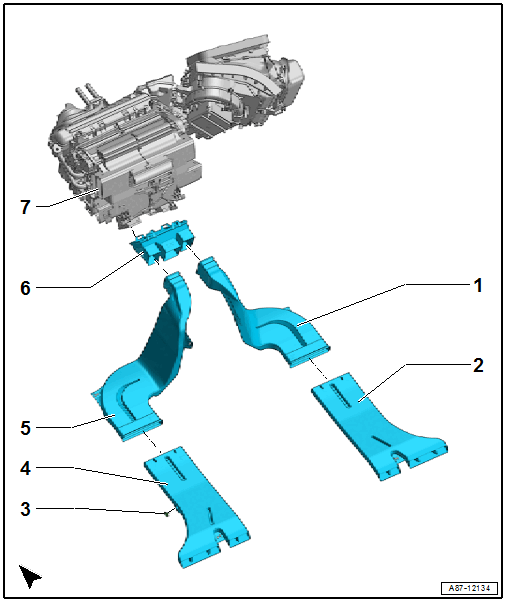

Fig 1: Air Ducts And Vents In The Rear Vehicle Interior, "Low" A/C System (Without A/C System)

Courtesy of AUDI OF AMERICA, LLC

Air Duct to the Footwell Vent under the Right Seat (Front Passenger Seat)
Removing and installing:

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
Footwell Vent under the Right Seat (Front Passenger Seat)
Removing and installing:

-- Carefully lift up the carpet on the front passenger side. Refer to CARPET, REMOVING AND INSTALLING .
Closure Cap
- Only present when in the footwell vent under the left seat. Refer to -Item 4- AIR DUCTS AND VENTS IN THE REAR VEHICLE INTERIOR, "Low" A/C SYSTEM (WITHOUT A/C SYSTEM) List Item:Footwell Vent Under the Left Seat (Driver Seat) and opening for the temperature sensor is present, to close them.
Footwell Vent Under the Left Seat (Driver Seat)
- Different versions (with or without an opening for a temperature sensor). Refer to the Parts Information.
  Removing and installing:

  -- Carefully lift up the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .
Air Duct to the Footwell Vent under the Left Seat (Driver Seat)
Removing and installing:

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the carpet on the driver side. Refer to CARPET, REMOVING AND INSTALLING .
Air Routing
- From the heater and A/C unit to the air ducts to the left footwell vents
  Removing and installing:

  -- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

  -- Carefully loosen the carpet on the driver side and front passenger side. Refer to CARPET, REMOVING AND INSTALLING .

  -- Remove the air ducts to the rear footwell vents from the air duct.
Front Heater and A/C Unit with Air Intake Housing
- Different versions. Refer to OVERVIEW - HEATER AND A/C UNIT and the Parts Information.
- Version for "Low" A/C system (heater without A/C system).
- Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING
- Air intake, air vents and air routing in the heater and A/C unit. Refer to AIR DUCT IN FRONT HEATER AND A/C UNIT .
