Height Adjustment With Spacer
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Adjustment Gauge:3371
- Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .
Procedure

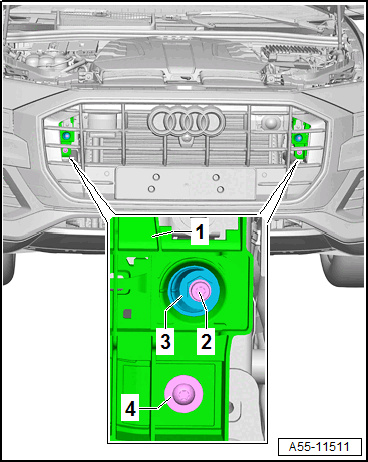

-- Loosen the bolts -2- and -4-.
TIP:
With the RS Q8, the bolts -4- can be reached through an opening in the cover OVERVIEW - RADIATOR GRILLE .
-- Align the distance between the radiator grille and the hood on the adjuster -3-.
-- Tighten the bolts -2- and -4- for spacer -1-.
Tightening Specifications
- Refer to OVERVIEW - LOCK CARRIER
- Screw on adjuster. Refer to OVERVIEW - HEADLAMPS
