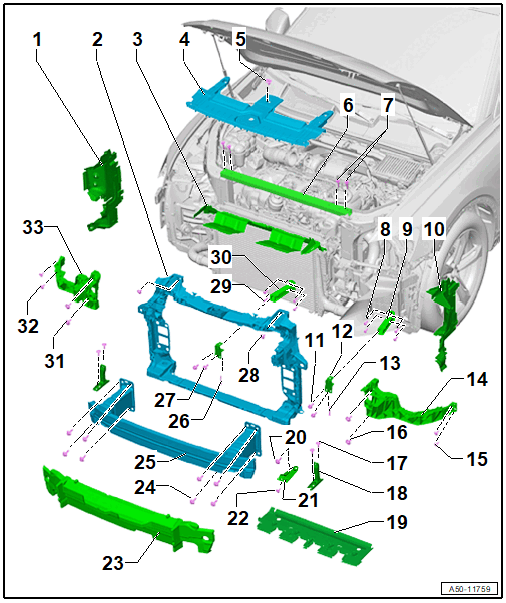

Overview - Lock Carrier
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- Right
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Air Duct
- Upper
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 5
- Lock Carrier Brace
- Removing and Installing. Refer to LOCK CARRIER BRACE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 10 Nm
- Bolt
- Quantity: 4
- 10 Nm
- Lower Longitudinal Member
- Left
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Air Duct
- Left
- Bolt
- Quantity: 2
- 23 Nm
- Bracket
- For the lower longitudinal member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Mount
- Left
- For headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Bolt
- Quantity: 4
- 8 Nm
- Support
- For headlamp mount
- Removing and Installing. Refer to HEADLAMP MOUNT SUPPORT, REMOVING AND INSTALLING .
- Air Duct
- Lower
- Bolt
- 10 Nm
- Mount
- For the radiator
- Equipment version: V8 engine
- Removing and Installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 6 Nm
- Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Bolt
- Quantity: 8
- 60 Nm
- Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Bolt
- Quantity: 2
- 23 Nm
- Bolt
- 8 Nm
- Bolt
- Quantity: 4
- 10 Nm
- Lower Longitudinal Member
- Right
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Mount
- Right
- For headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
