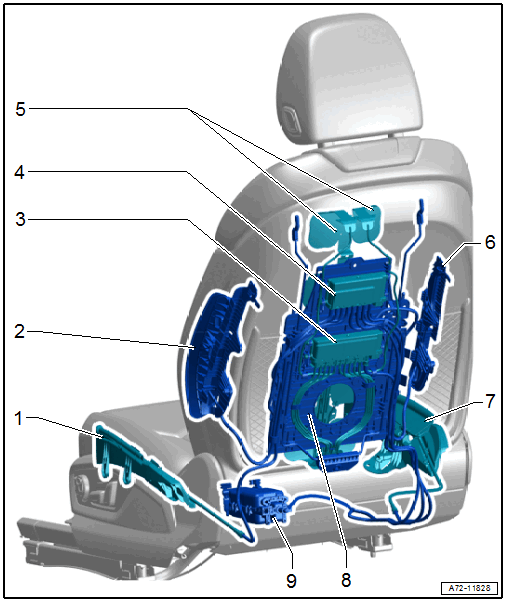

Component Location Overview - Pneumatic System
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Left Seat Bolster Inflation Adjuster
- Left Backrest Bolster Inflation Adjuster
- Available only with COMPONENT LOCATION OVERVIEW - PNEUMATIC SYSTEM
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, MODULE CARRIER/LUMBAR SUPPORT/SEAT BOLSTER INFLATION ADJUSTER .
- Valve Block 2 in Driver Seat -N476-
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- for massage mat
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, MASSAGE MAT .
- Valve Block 1 in Driver Seat -N475-
- Front passenger side: Valve Block 1 in Front Passenger Seat -N477-
- for lumbar support and bolster adjuster
- Available only with -item 8- COMPONENT LOCATION OVERVIEW - PNEUMATIC SYSTEM
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, MODULE CARRIER/LUMBAR SUPPORT/SEAT BOLSTER INFLATION ADJUSTER .
- Massage Mat
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, MASSAGE MAT .
- Right Backrest Bolster Inflation Adjuster
- Available only with COMPONENT LOCATION OVERVIEW - PNEUMATIC SYSTEM
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, MODULE CARRIER/LUMBAR SUPPORT/SEAT BOLSTER INFLATION ADJUSTER .
- Right Seat Bolster Inflation Adjuster
- Module Carrier, Lumbar Support Air Cushion
- Driver Multi-Contour Seat Compressor -V439- with integrated Driver Multi-Contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-Contour Seat Compressor -V440- with integrated Front Passenger Multi-Contour Seat Control Module -J872-
- Overview. Refer to OVERVIEW - PNEUMATIC SYSTEM, COMPRESSOR .
