Overview - Pneumatic System, Massage Mat
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

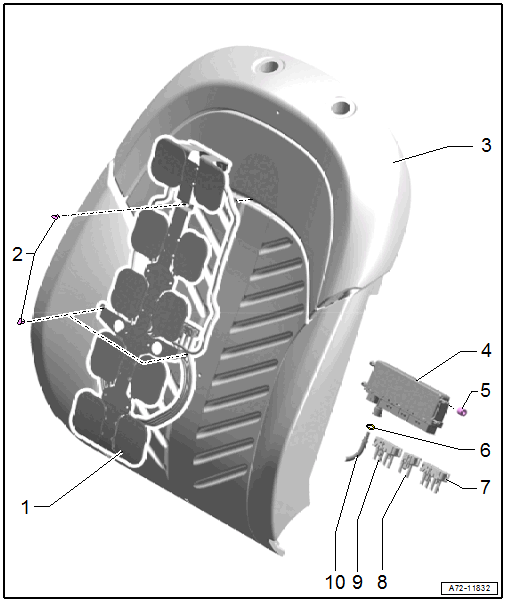

- Massage Mat
- Press the pneumatic lines on until they click into place.
- Pull to make sure the connection is engaged correctly.
- Removing and Installing. Refer to MASSAGE MAT, REMOVING AND INSTALLING .
- Clips
- to secure the massage mat
- Quantity: 3
- Replace
- Cushion
- Removing and Installing. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Valve Block 2 in Driver Seat -N476-
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- for massage mat
- Interchange prevention markings →← / + + on the hose coupling and valve block 2
- Removing and Installing. Refer to VALVE BLOCK 2 IN DRIVER / FRONT PASSENGER SEAT -N476- / -N478-, REMOVING AND INSTALLING .
- Connect the pneumatic lines. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING
- Rubber Buffer
- Valve block retainer
- Quantity: 4
- O-Ring
- Replace if necessary.
- Hose Connector Coupling
- 4-pin
- Interchange prevention marking →← on the hose coupling and valve block 2
- Hose Connector Coupling
- 2-pin
- Hose Connector Coupling
- 4-pin
- Interchange prevention markings + + on the hose coupling and valve block 2
- Pneumatic Line
