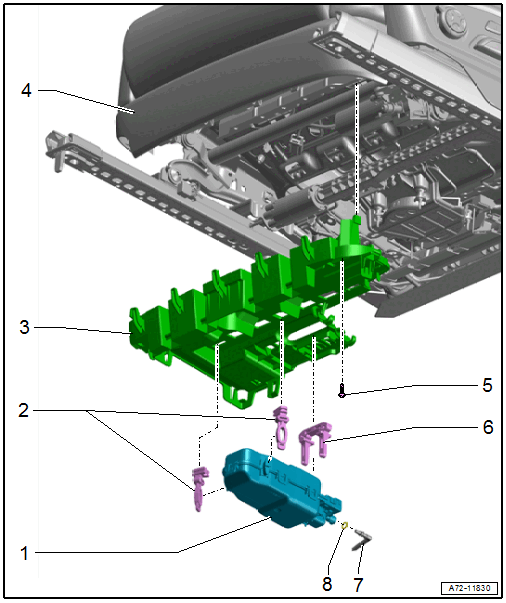

Overview - Pneumatic System, Compressor
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Multi-Contour Seat Compressor -V439- with integrated Driver Multi-Contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-Contour Seat Compressor -V440- with integrated Front Passenger Multi-Contour Seat Control Module -J872-
- Removing and Installing. Refer to PNEUMATIC SEAT COMPRESSOR, REMOVING AND INSTALLING .
- Rubber Bracket
- For the supercharger
- Quantity: 2
- Bracket
- for seat trim at the front
- Removing and Installing. Refer to SEAT SIDE TRIM/CONTROL MODULE/COMPRESSOR BRACKET, REMOVING AND INSTALLING .
- Front Seat
- Bolt
- Quantity: 2
- Tightening specification OVERVIEW - SEAT PAN
- Rubber Bracket
- For the supercharger
- Angle Piece for Pneumatic Line
- O-Ring
- Replace if necessary.
