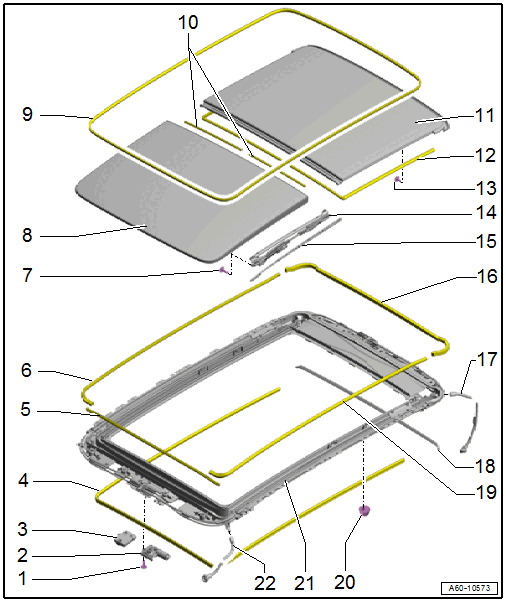

Overview - Sliding Sunroof
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3 Nm
- Sunroof Motor -V1-
- Removing and Installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Sunroof Control Module -J245-
- Removing and Installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
- Inner Seal
- Attached from the inside onto the sunroof frame
- Front Seal
- Mounted on the sunroof frame
- For removing and installing the sunroof frame must be removed. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Foam Seal
- Bonded to the sunroof frame
- Replace after removing
- Bolt
- Replace after removing
- Self-locking
- 5.5 Nm
- Front Glass Panel
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
- Roof Opening Seal
- Replace after removing
- Removing and Installing. Refer to ROOF OPENING SEAL, REMOVING AND INSTALLING .
- Seals
- For the front glass panel
- Replace after removing
- Removing and Installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING, FRONT .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Rear Glass Panel
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Removing and Installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Seal
- For the rear glass panel
- Replace after removing
- Removing and Installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING, REAR .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Bolt
- Replace after removing
- Self-locking
- 5.5 Nm
- Sliding Sunroof Tilting Mechanism
- Removing and Installing. Refer to SLIDING SUNROOF TILTING MECHANISM, REMOVING AND INSTALLING .
- Tilting Mechanism Guide Rail, Removing and Installing. Refer to TILTING MECHANISM GUIDE RAIL, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Trim
- For sliding sunroof tilting mechanism
- Foam Seal
- Bonded to the sunroof frame
- Replace after removing
- Rear Water Drain Hose
- Overview. Refer to Overview - Water Drain Hoses, Rear .
- Rear Trim
- Foam Seal
- Bonded to the sunroof frame
- Replace after removing
- Nut
- Tightening sequence. Refer to Installing .
- 8 Nm
- Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Front Water Drain Hose
- Overview. Refer to Overview - Water Drain Hoses, Front .
